Product Summary
The ssm2164sz is a Low Cost Quad Voltage Controlled Amplifier. The ssm2164sz contains four independent voltage controlled amplifiers (VCAs) in a single package. High performance of the ssm2164sz is provided at a very low cost-per-VCA, resulting in excellent value for cost sensitive gain control applications. Each VCA of the ssm2164sz offers current input and output for maximum design flexibility, and a ground referenced –33 mV/dB control port. The applications of the ssm2164sz include Remote, Automatic, or Computer Volume Controls, Automotive Volume/Balance/Faders, Audio Mixers, Compressor/Limiters/Compandors, Noise Reduction Systems, Automatic Gain Controls, Voltage Controlled Filters, Spatial Sound Processors, Effects Processors.
Parametrics
ssm2164sz absolute maximum ratings: (1)Supply Voltage: ±18 V; (2)Input, Output, Control Voltages: V– to V+; (3)Output Short Circuit Duration to GND: Indefinite; (4)Storage Temperature Range: –65 ℃ to +150 ℃; (5)Operating Temperature Range: –40 ℃ to +85 ℃; (6)Junction Temperature Range: –65 ℃ to +150 ℃; (7)Lead Temperature Range (Soldering 60 sec): +300 ℃.
Features
ssm2164sz features: (1)Four High Performance VCAs in a Single Package; (2)0.02% THD; (3)No External Trimming; (4)120 dB Gain Range; (5)0.07 dB Gain Matching (Unity Gain); (6)Class A or AB Operation.

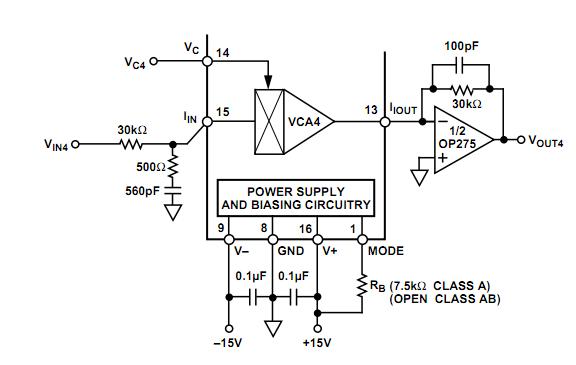

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 SSM2164SZ |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
|
|
||||||||||||||||
|
SSM2164SZ-REEL |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
|
|
||||||||||||||||
|
SSM2164SZ-REEL7 |
Analog Devices Inc |
IC AMP AUDIO QUAD CLASSAB 16SOIC |
Data Sheet |
|
|
||||||||||||||||
