Product Summary

The str-g5653 is a Power Switching Regulator. It is a hybrid IC with a built-in MOS FET and control IC, designed for a primary side regulation. The protection functions of the str-g5653 are (1)OVP(over voltage protection circuit); (2)OCP(over current protection circuit); (3)TSD(Thermal shutdown circuit).

Diagrams

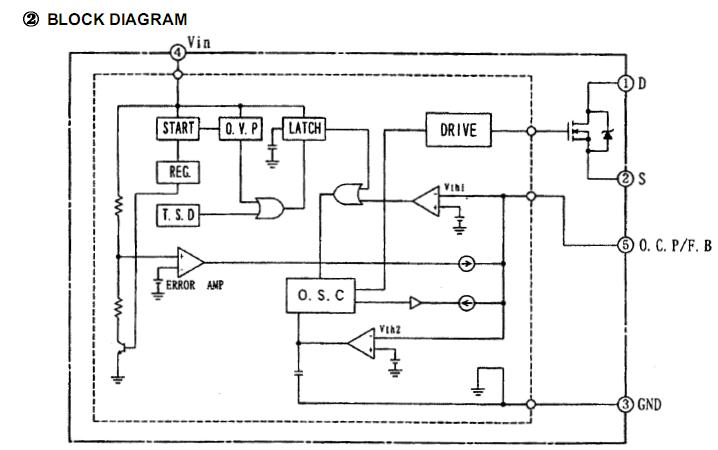

str-g5653 block diagram
