TLP1002A

tlp1002a, digital output photo-interrupter, 17 V, 50 mA, Toshiba Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: TLP1002A

Brand:: Toshiba Semiconductor - Toshiba | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:TLP1002A
US $2.30 - 2.50
Quantity:

piece

Product Summary

The tlp1002a is a digital output photo-interrupter combining GaAs infrared LED with high sensitive and high gain Si photo IC. Directly connectable to TTL, LSTTL and CMOS.

Parametrics

tlp1002a absolute maximum ratings: (1)Forward current, IF: 50 mA; (2)Forward current derating, IF/℃: -0.33 mA/℃; (3)Reverse voltage, VR: 5 V; (4)Supply voltage, VCC: 17 V; (5)Output current, IO: 50 mA; (6)Power dissipation, PO: 250 mW; (7)Power dissipation derating, PO/℃: -3.33 mW/℃; (8)Operating temperature range, TOPR: -25 to 85 ℃; (9)Storage temperature range, TSTG: -40 to 100℃; (10)Soldering temperature, TSOL: 260 ℃.

Features

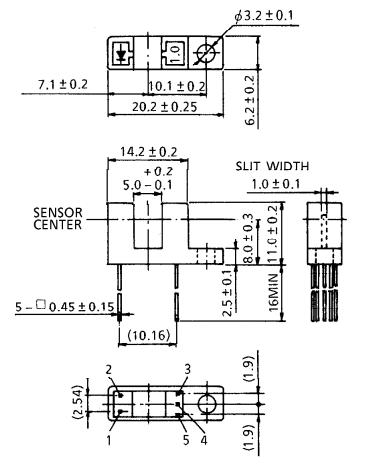

tlp1002a features: (1)One side mounting type; (2)Gap: 5 mm; (3)Resolution: Slit width 1mm; (4)Digial output; (5)Built-in Schmitt trigger circuit; (6)Threshold input current: 3 mA; (7)Operating supply voltage: VCC=4.5 to 17 V; (8)Detector side is of vision light cut type.
