Product Summary

The tm1628 is an LED Controller driven on a 1/7 to 1/8 duty factor. Eleven seg m ent output lines, six grid output lines, 1 segment/grid output lines, one display memory, control circuit, key scan circuit are all incorporated into a single chip to build a highly reliable peripheral device for a single chip microcomputer. Serial data is fed to tm1628 via a three-line serial interface. Housed in a 28-pin SO Package, tm1628 pin assignments and application circuit are opti m ized for easy PCB Layout and cost saving advantages. The applications of the tm1628 include Micro-computer Peripheral Device, VCR set Combiset.

Parametrics

tm1628 absolute maximum ratings: (1)Supply Voltage, VDD: -0.5 to +7 Volts; (2)Logic Input Voltage, VI: -0.5 to V D D + 0.5 Volts; (3)Driver Output Current, IOLGR: +250 mA; (4)Maximum Driver Output Current/Total, ITOTAL: 400 mA.

Features

tm1628 features: (1)CMOS Technology; (2)Low Power Consu m ption; (3)Multiple Display Modes (12 se g m ent, 6 Grid to 11 se g m ent, 7 Grid); (4)Key Scanning (8 × 2 Matrix); (5)8-Step Dimming Circuitry; (6)Serial Interface for Clock, Data Input/Output, Strobe Pins; (7)Available in 28-pin, SOP Package.

Diagrams

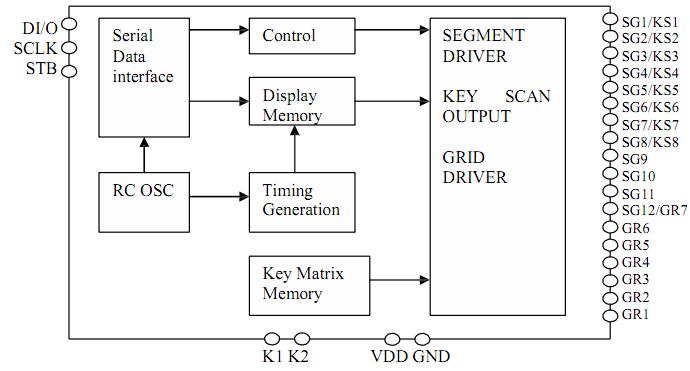

tm1628 block diagram
