Product Summary

The tmpz84c011af6 is a high-performance CMOS 8-bit microprocessor. The tmpz84c011af6 contains the functional peripherals such as counter timer circuit parallel I/O port, and clock generator/controller around the TLCS-Z80 MPU. This microprocessor of the tmpz84c011af6 directly inherits the basic architecture of the TLCS-Z80 MPC, making available the software resources and development tools accumulated so far.

Parametrics

tmpz84c011af6 absolute maximum ratings: (1)VCC: -0.5 to 7 V; (2)VIN: -0.5 to VCC +0.5 V; (3)PD: 250 mW; (4)TSOLDER: 260 ℃; (5)TSTG: -65 to 150 ℃; (6)TOPR: -40 to 85 ℃.

Features

tmpz84c011af6 features: (1)High speed operation; (2)Built-in clock generator; (3)Built-in standby capability; (4)Low power consumption; (5)Wide operational power voltage range; (6)Wide operational temperature range; (7)Three selectable operational modes; (8)Many general-purpose ports which support I/O operation on a bit basis; (9)Four channels of timer/counter; (10)Built-in dynamic RAM refresh countroller; (11)Daisy-chain interript control pin; (12)Hoursed in a compact 100-pin mini-flat package.

Diagrams

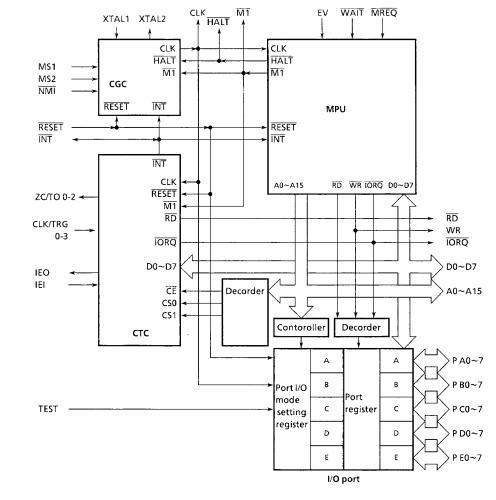

tmpz84c011af6 block diagram
