TPS76928DBVR

Product Summary

The tps76928dbvr is a ultralow-power 100-mA low-dropout linear regulator. The tps76928dbvr family of low-dropout (LDO) voltage regulators offers the benefits of low dropout voltage, ultralow-power operation, and miniaturized packaging. These regulators feature low dropout voltages and ultralow quiescent current compared to conventional LDO regulators. Offered in a 5-terminal small outline integrated-circuit SOT-23 package. The tps76928dbvr series devices are ideal for micropower operations and where board space is at a premium. A combination of new circuit design and process innovation has enabled the usual PNP pass transistor to be replaced by a PMOS pass element. Because the PMOS pass element behaves as a low-value resistor, the dropout voltage is very low, typically 71 mV at 100 mA of load current (TPS76950), and is directly proportional to the load current. Since the PMOS pass element is a voltage-driven device, the quiescent current is ultralow (28 μA maximum) and is stable over the entire range of output load current (0 mA to 100 mA). Intended for use in portable systems such as laptops and cellular phones, the ultralow-dropout voltage feature and ultralow-power operation result in a significant increase in system battery operating life.

Parametrics

tps76928dbvr absolute maximum ratings: (1)Input voltage range: –0.3 V to 13.5 V; (2)Voltage range at EN: –0.3 V to VI+ 0.3 V; (3)Voltage on OUT, FB: 7 V; (4)ESD rating, HBM: 2 kV; (5)Operating virtual junction temperature range, TJ: –40°C to 150°C; (6)Storage temperature range, Tstg: –65°C to 150°C.

Features

tps76928dbvr features: (1)100-mA Low-Dropout Regulator; (2)Available in 1.2-V, 1.5-V, 1.8-V, 2.5-V, 2.7-V, 2.8-V, 3.0-V, 3.3-V, and 5-V Fixed-Output and Adjustable Versions; (3)Only 17 μA Quiescent Current at 100 mA 1 μA Quiescent Current in Standby Mode; (4)Dropout Voltage Typically 71 mV at 100mA; (5)Over Current Limitation; (6)–40°C to 125°C Operating JunctionTemperature Range; (7)5-Pin SOT-23 (DBV) Package.

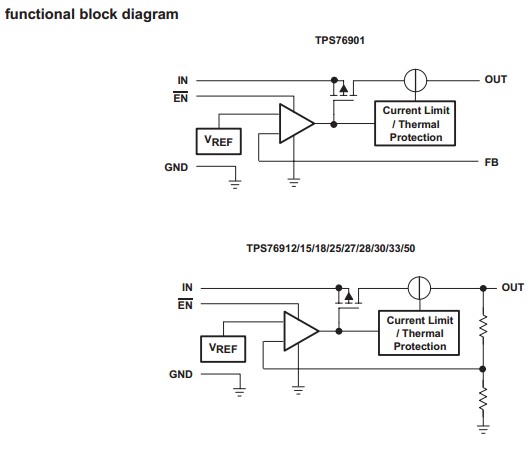

Diagrams
