Product Summary
The ucn5841ep is a latched driver. The merging of the ucn5841ep permits the UCN5841/42A, UCN5841/42LW, and A5841/42SLW integrated circuits to be used in a wide variety of peripheral power driver applications. Each device has an eight-bit CMOS shift register and CMOS control circuitry, eight CMOS data latches, and eight bipolar current-sinking Darlington output drivers. The 500 mA npn Darlington outputs, with integral transient-suppression diodes, are suitable for use with relays, solenoids, and other inductive loads.<br />
Parametrics
ucn5841ep absolute maximum ratings: (1)Output Voltage, VCE: 80 V; (2)Output Voltage, VCE(sus): 50 V ; (3)Logic Supply Voltage Range, VDD: 4.5 V to 15 V; (4)VDD with Reference to VEE: 25 V; (5)Emitter Supply Voltage, VEE: -20 V; (6)Input Voltage Range, VIN: -0.3 V to VDD + 0.3 V; (7)Continuous Output Current, IOUT : 500 mA; (8)Package Power Dissipation, PD: See Graph; (9)Operating Temperature Range, TA: -20℃ to +85℃; (10)Storage Temperature Range, TS: -55℃ to +150℃.
Features
ucn5841ep features: (1)To 3.3 MHz Data-Input Rate; (2)CMOS, NMOS, TTL Compatible Inputs; (3)Internal Pull-Up/Pull-Down Resistors; (4)Low-Power CMOS Logic and Latches,; (5)High-Voltage Current-Sink Outputs; (6)Output Transient-Protection Diodes; (7)Single or Split Supply Operation; (8)DIP or SOIC Packaging; (9)Automotive Capable.<br />

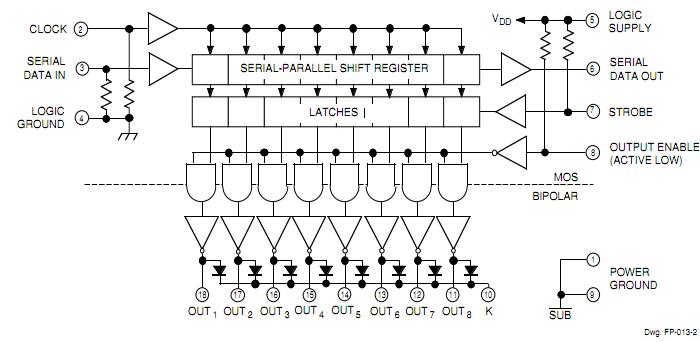

Diagrams
