Product Summary
The v375a24c600bn4 is a DC-DC converter module. The v375a24c600bn4 uses advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency ZCS/ZVS switching provides high power density with low noise and high efficiency. It is suit for off-line systems with pfc front ends, industrial and process control, distributed power, medical, ate, communications, defense, aerospace.
Parametrics
v375a24c600bn4 absolute maximum ratings: (1)+In to –In voltage: -0.5 to +525 Vdc; (2)PC to –In voltage: -0.5 to +7.0 Vdc; (3)PR to –In voltage: -0.5 to +7.0 Vdc; (4)SC to -Out voltage: -0.5 to +1.5 Vdc; (5)-Sense to -Out voltage: 1.0 Vdc; (6)Isolation voltage in to out: 3000 Vrms Test voltage; (7)in to base: 1500 Vrms Test voltage; (8)out to base: 500 Vrms Test voltage; (9)Operating Temperature: -55 to +100 °C M-Grade; (10)Storage Temperature: -65 to +125 °C M-Grade.
Features
v375a24c600bn4 features: (1)RoHS Compliant (with F or G pin option); (2)DC input range: 250 – 425 V; (3)Input surge withstand: 500 V for 100 ms; (4)DC output: 2 – 54 V; (5)Programmable output: 10 to 110%; (6)Regulation: ±0.25% no load to full load; (7)Efficiency: Up to 89%; (8)Maximum operating temp: 100°C, full load; (9)Power density: up to 120 W per cubic inch; (10)Height above board: 0.43 in. (10,9 mm); (11)Parallelable, with N+M fault tolerance; (12)Low noise ZCS/ZVS architecture.

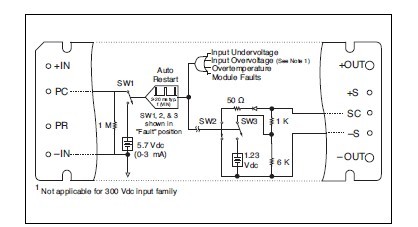

Diagrams
