Product Summary
The 3-390113-1 is an SO DIMM.
Parametrics
3-390113-1 absolute maximum ratings: (1)DRAM Voltage: 3.3 V; (2)Centerline: 0.80mm [0.031in]; (3)Center Key: 4.80mm [0.189in] Offset Left.
Features
3-390113-1 features: (1)material, housing, high temperature olastic, UL94v-o, NAT contact copper alloy, latch: SUS301 stainless steel plating; (2)finish contact area 0.00025 min gold plate on 0.001 min all over nickel, soldeing area 0.00005 min to 0.00030 max gold plate; (3)tolerances non-accumulative; (4)packaged 12 pieces per hard tray; (5)finish contact area 0.00025 min gold plate on 0.001 min all over nickel, soldering area bright tin lead plate; (6)part packaged per EIA-IS704 standard reel diameter shall be 330mm, tape width shall be 88mm and tape pitch shall be 36mm.

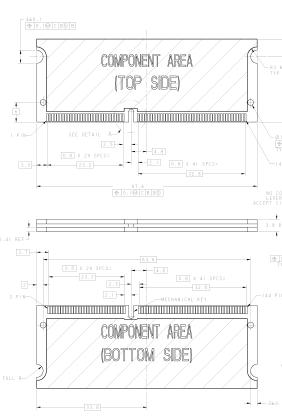

Diagrams
