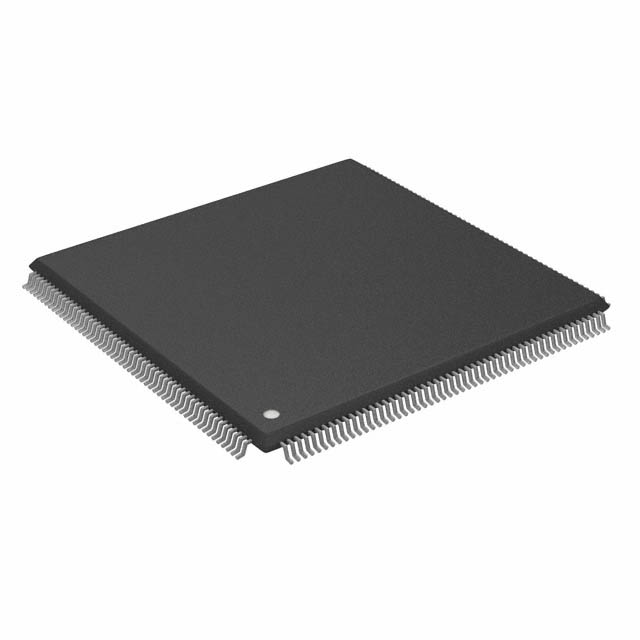

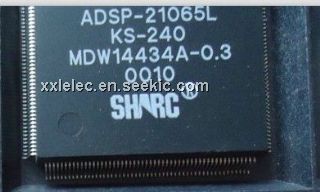

ADSP-21065L

Product Summary

The ADSP-21065L is a 32-bit processor optimized for cost sensitive applications. It offers the highest levels of performance and memory integration of any 32-bit DSP in the industry. It is also the only DSP in the industry that offer both fixed and floating-point capabilities, without compromising precision or performance. The ADSP-21065L is fabricated in a high speed, low power CMOS process, 0.35 mm technology. With its on-chip instruction cache, the ADSP-21065L can execute every instruction in a single cycle. It combines a floating-point DSP core with integrated, on-chip system features, including a 544 Kbit SRAM memory, host processor interface, DMA controller, SDRAM controller, and enhanced serial ports.

Parametrics

ADSP-21065L absolute maximum ratings: (1)VDD, Supply Voltage:C grade: 3.13 to 3.60V; K grade: 3.13 to 3.60V; (2)TCASE, Case Operating Temperature: C grade:–40 to +100℃; K grade: 0 to +85℃; (3)VIH, High Level Input Voltage @ VDD = max: grade: 2.0 to VDD + 0.5V; K grade: 2.0 to VDD + 0.5V; (4)VIL1 Low Level Input Voltage1 @ VDD = min: C grade:–0.5 to 0.8V; K grade: 0.5 to 0.8V; (5)VIL2 Low Level Input Voltage2 @ VDD = min: C grade: –0.5 to 0.7V; K grade: -0.5 to 0.7V.

Features

ADSP-21065L features: (1)66 MIPS, 198 MFLOPS Peak, 132 MFLOPS Sustained Performance; (2)User-Configurable 544 Kbits On-Chip SRAM Memory; (3)Two External Port, DMA Channels and Eight Serial Port, DMA Channels; (4)SDRAM Controller for Glueless Interface to Low Cost External Memory (@ 66 MHz); (5)64M Words External Address Range; (6)12 Programmable I/O Pins and Two Timers with Event Capture Options; (7)Code-Compatible with ADSP-2106x Family 208-Lead MQFP or 196-Ball Mini-BGA Package 3.3 Volt Operation; (8)Flexible Data Formats and 40-Bit Extended Precision 32-Bit Single-Precision and 40-Bit Extended-Precision IEEE Floating-Point Data Formats; (9)32-Bit Fixed-Point Data Format, Integer and Fractional, with Dual 80-Bit Accumulators; (10)Single-Cycle Multiply and ALU Operations in Parallel with Dual Memory Read/Writes and Instruction Fetch; (11)Multiply with Add and Subtract for Accelerated FFT Butterfly Computation; (12)1024-Point Complex FFT Benchmark: 0.274 ms (18,221 Cycles).

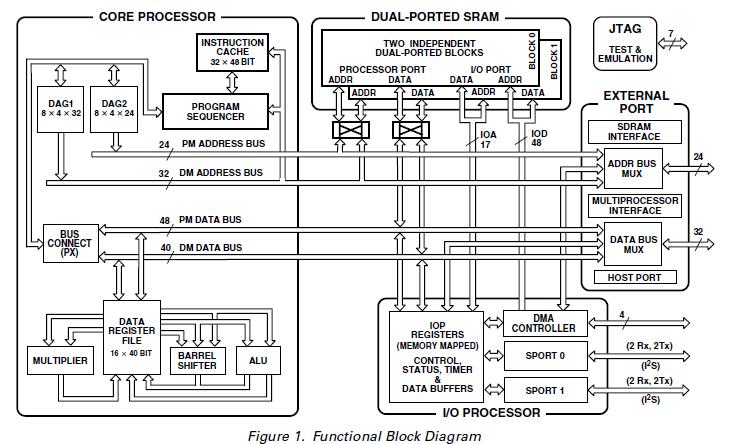

Diagrams
