Product Summary
The AS1301EHT-ADJ is a 50mA inductorless boost converter using a double H-bridge charge-pump topology with two external flying capacitors. The AS1301EHT-ADJ runs on a 1MHz fixed frequency and is utilized with a low noise regulation scheme to allow usage together with sensitive RF circuitry from the same battery supply. The AS1301EHT-ADJ is available in TDFN (3x3x0.8mm) 10-pin and WL-CSP 8-bumps packages. The AS1301EHT-ADJ is ideal for dual/triple AA cells or single Li-Ion battery cell to 5V conversion, mobile phones, portable instruments, microprocessor based systems, remote data-acquisition systems, inductorless DC-DC conversion.
Parametrics
AS1301EHT-ADJ absolute maximum ratings: (1)All pins to GND: -0.3 +7.0 V; (2)Operating Temperature Range: -40 +85°C; (3)Storage Temperature Range: -65 +125°C; (4)ESD: 2 kV; (5)Package Body Temperature: +260 °C; (6)Iinr Inrush Current: 500 mA; (7)tSTART Start-up Time: 1 ms.
Features
AS1301EHT-ADJ features: (1)Up to 92% Efficiency; (2)2.7 to 5.25V Input Voltage; (3)Regulated 5V Output; (4)Automatic Mode Up-Switching; (5)<5μA Shutdown Current; (6)5V Tolerant Enable Signal; (7)Up to 50mA Load Current; (8)Overload Protection; (9)Output Disconnected During Shutdown; (10)Soft Start; (11)No Inductor Required; (12)Small External Components Required (COUT ≤2.2μF, CFLY ≤220nF); (13)Low Noise Fixed Frequency 1MHz Charge Pump.

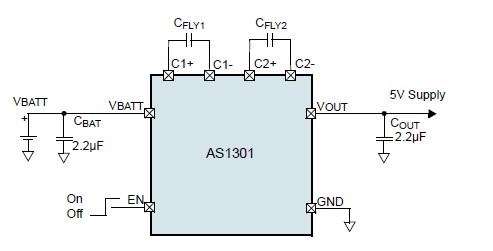

Diagrams
