ATMEGA128L-8AI

ATMEGA128L-8AI, low-power CMOS 8-bit microcontroller, sop, 6V, 40mA, ATMEL Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.00~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $2.00~2.50

PartNumber:: ATMEGA128L-8AI

Brand:: ATMEL Corporation - ATMEL | Pack: SOP | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Dannie's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-10-28

From Other Seller

Part Number:ATMEGA128L-8AI
US $2.00 - 2.50
74AHC2G08VS SOP-8

US $2.00 - 2.00 / Piece
(0) Remove
YL-G709

US $65.00 - 68.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

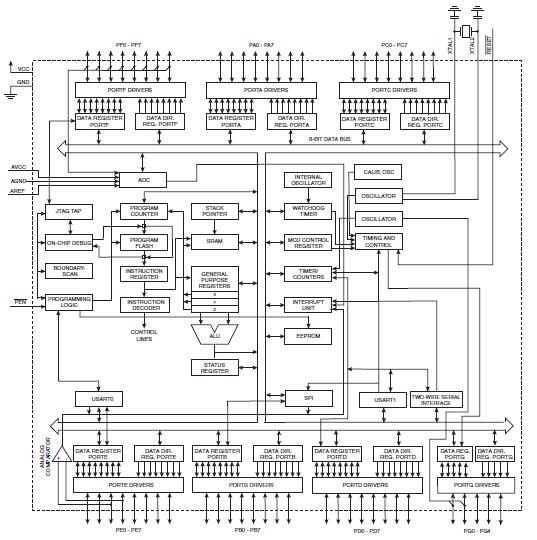

The ATMEGA128L-8AI is a low-power CMOS 8-bit microcontroller based on the AVR enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA128L-8AI achieves throughputs approaching 1 MIPS per MHz allowing the system designer to optimize power consumption versus processing speed. The AVR core combines a rich instruction set with 32 general purpose working registers. All the 32 registers are directly connected to the Arithmetic Logic Unit (ALU), allowing two independent registers to be accessed in one single instruction executed in one clock cycle. The resulting architecture is more code efficient while achieving throughputs up to ten times faster than conventional CISC microcontrollers.

Parametrics

ATMEGA128L-8AI absolute maximum ratings: (1)Storage Temperature: -65 to +150℃; (2)Voltage on any Pin except RESET; (3)with respect to Ground: -0.5V to VCC+0.5V; (4)Voltage on RESET with respect to Ground: -0.5V to +13.0V; (5)Maximum Operating Voltage: 6.0V; (6)DC Current per I/O Pin: 40.0 mA; (7)DC Current VCC and GND Pins: 200.0 - 400.0mA.

Features

ATMEGA128L-8AI features: features: (1)High-performance, Low-power AVR 8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Nonvolatile Program and Data Memories; (4)JTAG (IEEE std. 1149.1 Compliant) Interface; (5)Power-on Reset and Programmable Brown-out Detection; (6)Internal Calibrated RC Oscillator; (7)External and Internal Interrupt Sources; (8)Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby,and Extended Standby Software Selectable Clock Frequency; (9)ATmega103 Compatibility Mode Selected by a Fuse; (10)Global Pull-up Disable.
