Product Summary

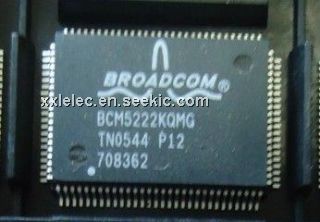

The BCM5222KQMG is a 10/100base-TX dual-port DIGI-PHY transceiver.

Parametrics

BCM5222KQMG absolute maximum ratings: (1)Standard Supported: IEEE 1149.1|IEEE 80 2.3; (2)Data Rate: 10|100 Mbps; (3)Number of Transceivers: 8; (4)Operating Supply Voltage: 2.5|3.3V.

Features

BCM5222KQMG features: (1)Dual-port 10/100BASE-TX IEEE 802.3u Fast Ethernet transceiver; (2)Power consumption: <195 mW per port; (3)Unique energy detection circuit to enable intelligent power management; (4)HP auto-MDIX; (5)Robust CESD tolerance; (6)Cable length indication; (7)Cable noise level indication; (8)Cable length greater than 140 meters; (9)Well under 10 PPM defect ratio quality; (10)Industrial temperature range (-40 to 85℃); (11)MII/7-wire serial interface; (12)IEEE 1149.1 (JTAG) scan chain support; (13)MII management via serial port; (14)100-pin PQFP and 100-pin fpBGA package.

Diagrams

BCM5222KQMG pin connection
