Product Summary
The BFG403 is a not designed for use in life support appliance, device, or systems where malfunction of the BFG403 can reasonably be expected to result in personal injury. Philips customers using or selling the BFG403 for use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such improper use or sale.
Parametrics
BFG403 absolute maximum ratings: (1)Collector-base voltage open emitter: 10 V; (2)Collector-emitter voltage open base: 4.5 V; (3)Emitter-base voltage open collector: 1 V; (4)Collector current (DC): 3.6 mA; (5)Total power dissipation: 16 mW; (6)Storage temperature: -65 to +150 °C; (7)Operating junction temperature: 150 °C.
Features
BFG403 features: (1)Low current; (2)Very high power gain; (3)Low noise figure; (4)High transition frequency; (5)Very low feedback capacitance.

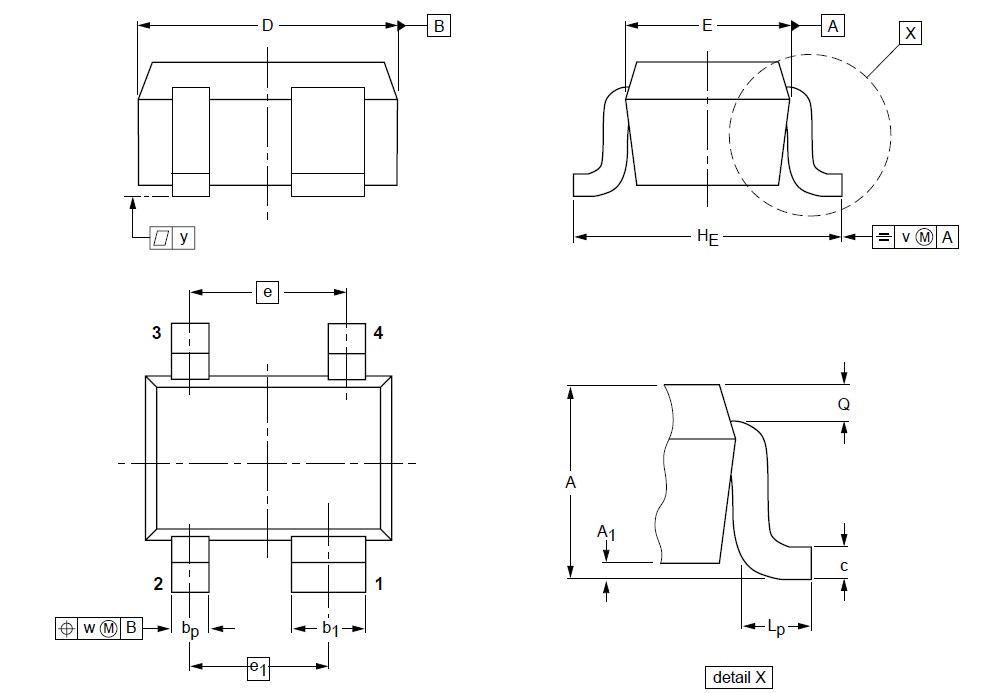

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 BFG403W,115 |
NXP Semiconductors |
Transistors RF Bipolar Small Signal NPN 4.5V 17GHZ |
Data Sheet |
|
|
||||||||||||
 |
BFG403W |
Other |
|
Data Sheet |
Negotiable |
|
||||||||||||
