Product Summary
The CXD2463R is a Timing Controller for CCD Camera. The CXD2463R generates the sync signals for timing control and back end signal processing in a CCD camera system using a 510H or 760H blackand-white CCD image sensor. The applications of the CXD2463R include Surveillance camera, Door phone camera.
Parametrics
CXD2463R absolute maximum ratings: (1)Supply voltage, VDD, AVDD: VSS -0.5 to VSS + 7.0 V; (2)Supply voltage, VSS: VL -0.5 to VL + 26.0 V; (3)Supply voltage, VH: VL -0.5 to VL + 26.0 V; (4)Supply voltage, VM: VL -0.5 to VL + 26.0 V; (5)Input voltage, VI: VSS -0.5 to VDD + 0.5 V; (6)Output voltage, VO: VSS -0.5 to VDD + 0.5 V; (7)Operating temperature, Topr: -20 to +75℃; (8)Storage temperature, Tstg: -55 to +150℃.
Features

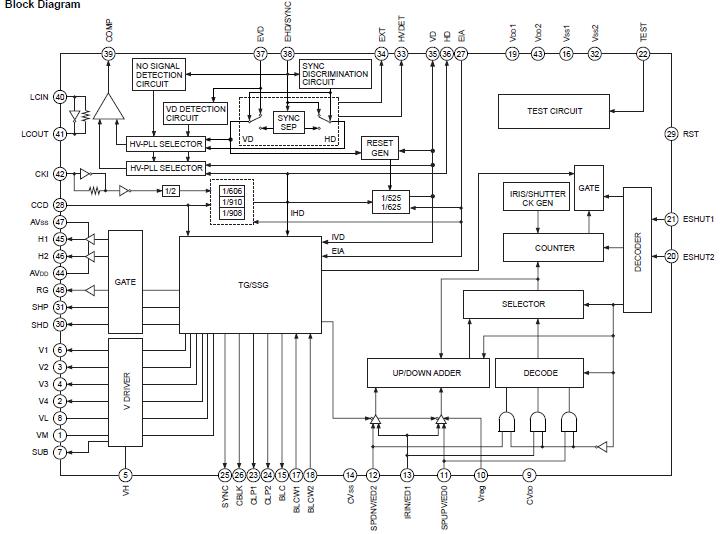

CXD2463R features: (1)Built-in sync signal generation function; (2)Built-in electronic iris (electronic shutter) function; (3)Supports low-speed limiter for electronic iris; (4)Supports external synchronization (Line-Lock, VReset + HPLL); (5)Supports automatic external sync discrimination; (6)Window pulse output for backlight compensation; (7)Built-in V driver.
