CY7C64613

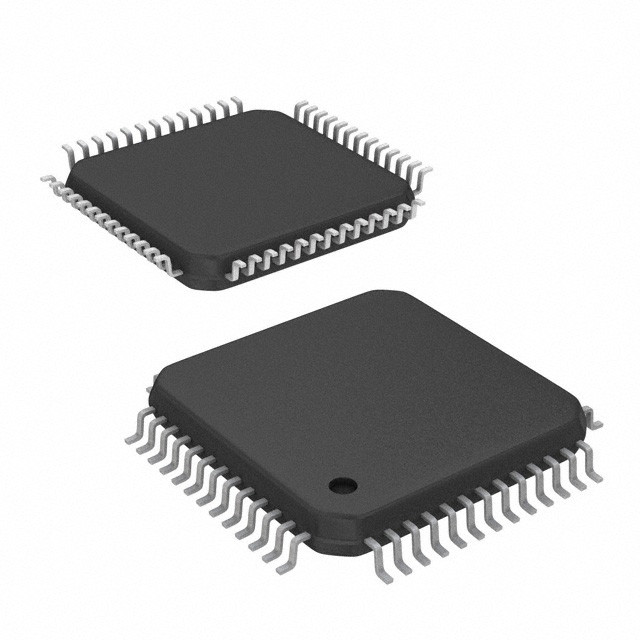

CY7C64613, EZ-USB FX USB Microcontroller, 4.0V, 500 mW, 200 mA, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $3.00~5.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 500 :	5.00 / Piece
501 ~ 1000 :	4.00 / Piece
1001 ~ 3000 :	3.00 / Piece

PartNumber:: CY7C64613

Brand:: Cypress Semiconductor - Cypress | Pack: QFP | D/C: 13+

Availability:: Supply Ability: 1/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-05-08

From Other Seller

Part Number:CY7C64613
US $3.00 - 5.00
Quantity:

piece

Product Summary

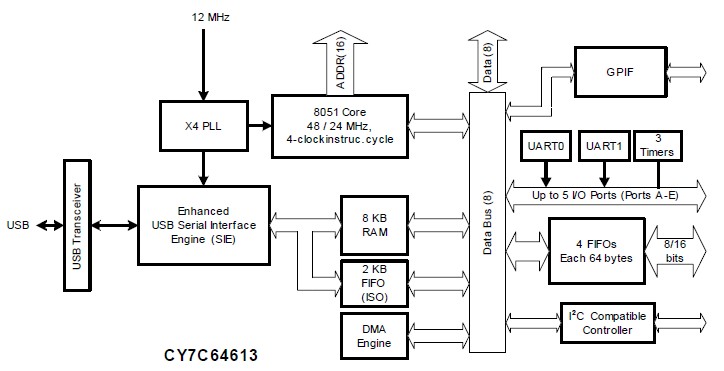

The CY7C64613 is an EZ-USB FX USB Microcontroller. The CY7C64613 is Cypress Semiconductors second-generation full-speed USB family. FX products offer higher performance and a higher level of integration than first-generation EZ-USB products. FX builds on the EZ-USB feature set, including an intelligent USB core, enhanced 8051, 8-Kbyte RAM, and high-performance I/O while maintaining upward code compatibility. The CY7C64613enhances the EZ-USB family by providing faster operation and more ways to transfer data into and out of the chip at very high speed.

Parametrics

CY7C64613 absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Supplied: 0℃ to +70℃; (3)Supply Voltage on VCC relative to GND: –0.5V to +4.0V; (4)DC Input Voltage: –0.5V to 5.25V; (5)DC Voltage Applied to Outputs in High Z State: –0.5V to VCC + 0.5V; (6)Power Dissipation: 500 mW; (7)Static Discharge Voltage: > 2 kV; (8)Latch-up Current: > 200 mA; (9)Max Output Sink Current: 10 mA.

Features

CY7C64613 features: (1)Single-chip integrated USB Transceiver, Serial Interface Engine (SIE), and enhanced 8051 microprocessor; (2)Certified compliant with USB Specifications 1.1 and 2.0 (full-speed device); (3)Software operation: 8051 runs code from internal RAM or external RAM.; (4)14 Bulk/Interrupt endpoints, each with a maximum packet size of 64 bytes (per USB specification); (5)16 Isochronous endpoints, with 2 KB of buffer space (1 KB, double buffered)which may be divided among the 16 isochronous endpoints; (6)3.3V operation; (7)Smart SIE; (8)Vectored interrupt system expanded for USB, FIFO flags and DMA interrupts; (9)Separate buffers for SETUP and DATA portions of a CONTROL transfer.
