ISL431

ISL431, High Performance Analog Switch, SOT, -0.3 to 15V, 30mA, Intel Corporation

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.90~3.00 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	3.00 / Piece
101 ~ 500 :	2.95 / Piece
501 ~ 10000 :	2.90 / Piece

PartNumber:: ISL431

Brand:: Intel Corporation - Intel | Pack: SOT | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-20

From Other Seller

Part Number:ISL431
US $2.90 - 3.00
Quantity:

piece

Product Summary

The ISL431 is a precision, high performance analog switch. The ISL431 is fully specified for 3.3V, 5V, and 12V operation, and feature improved leakage, Icc, and switching time specifications. Designed to operate from a single +2.4V to +12V supply, the low supply current (1μA Max over the temperature and voltage ranges) and low leakage currents (1nA) make the switch ideal for battery powered applications. The applications of the ISL431 include +3V/+5V DACs and ADCs, Sample and Hold Circuits, Digital Filters, Operational Amplifier Gain Switching Networks, High Frequency Analog Switching, High Speed Multiplexing, Integrator Reset Circuits.

Parametrics

ISL431 absolute maximum ratings: (1)V+ to GND: -0.3 to 15V; (2)Input Voltages, IN (Note 2): -0.3 to ((V+) + 0.3V); (3)NO, NC (Note 2): -0.3 to ((V+) + 0.3V); (4)Output Voltages, COM (Note 2): -0.3 to ((V+) + 0.3V); (5)Continuous Current (Any Terminal): 20mA; (6)Peak Current NO, NC, or COM (Pulsed 1ms, 10% Duty Cycle, Max): 30mA; (7)ESD Rating (Per MIL-STD-883 Method 3015): >2kV.

Features

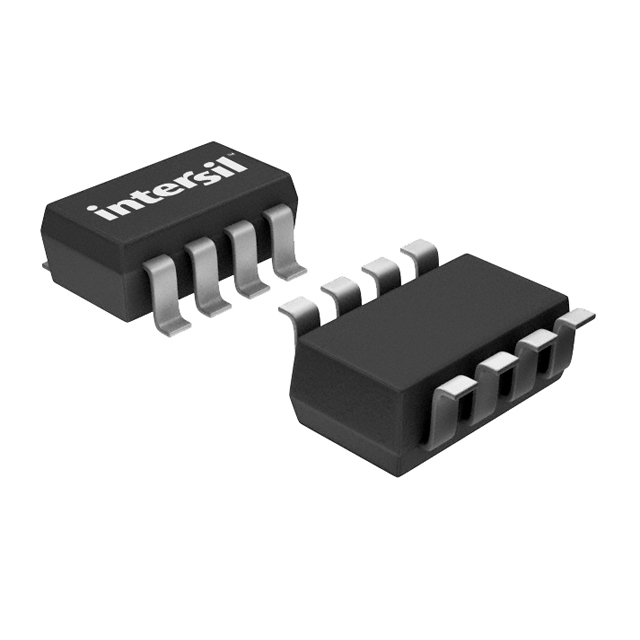

ISL431 features: (1)Fully Specified at 3.3V, 5V, and 12V Supplies; (2)Available in SOT-23 Packaging; (3)Single Supply Operation: +2.4V to +12V; (4)ON Resistance (RON Max): 20Ω(V+ = 5V); 10Ω(V+ = 12V); (5)RON Flatness: 1.5Ω; (6)Charge Injection (Max): 10pC; (7)Low Power Consumption (PD Max): <5μW; (8)Low Leakage Current (Max at 85oC) . 10nA (Off Leakage): 20nA (On Leakage); (9)Fast Switching Action, tON (Max): 80ns; tOFF (Max): 50ns; (10)Minimum 2000V ESD Protection per Method 3015.7; (11)TTL, CMOS Compatible.
