Product Summary
The PD064VT8 is a 6.4 Inch TFT LCD Panel. The applications of the PD064VT8 include computer peripheral, industrial meter, image communication and multi-media.
Parametrics
PD064VT8 absolute maximum ratings: (1)+5V Supply Voltage, VCC: -0.3 to +7.0V; (2)Input Signals Voltage, Vsig: -0.3 to VCC+0.3 V; (3)Storage Temperature, Tstg: -30 to +70℃; (4)Operating Temperature, Topa: -20 to +70℃.
Features
PD064VT8 features: (1)Compatible with VGA-480 , VGA-400 , VGA-350 mode; (2)Support the DENB mode; (3)Pixel in stripe configuration; (4)Slim and compact; (5)Display Colors : 262,144 colors; (6)Image Reversion : Up/Down and Left/Right; (7)Active area / Outline area = 57.02 %; (8)Viewing Direction: 6 o’clock; (9)Backlight lamps are Replaceable.

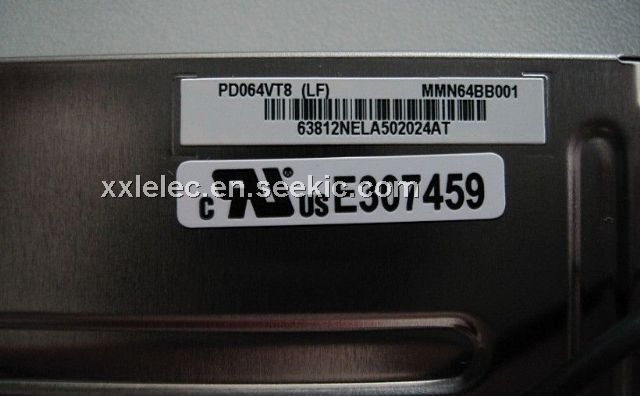

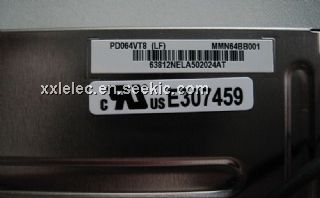

Diagrams
