SAB-C161PI-LF

Product Summary

The SAB-C161PI-LF is a high performance 16-bit single-chip CMOS microcontroller. The SAB-C161PI-LF combines high CPU performance (up to 12.5 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. They also provide clock generation via PLL and various on-chip memory modules such as program ROM, internal RAM, and extension RAM.

Parametrics

SAB-C161PI-LF absolute maximum ratings: (1)Storage temperature, TST: -65 to 150℃; (2)Junction temperature TJ: -40 to 150℃; (3)Voltage on VDD pins with respect to ground (VSS), VDD: -0.5 to 6.5 V; (4)Voltage on any pin with respect to ground (VSS), VIN: -0.5 to VDD + 0.5 V; (5)Input current on any pin during overload condition: -10 to 10 mA; (6)Absolute sum of all input currents during overload condition: |100| mA; (7)Power dissipation, PDISS: 1.5 W.

Features

SAB-C161PI-LF features: (1)High Performance 16-bit CPU with 4-Stage Pipeline, 80 ns Instruction Cycle Time at 25 MHz CPU Clock; 400 ns Multiplication (16 ?16 bit), 800 ns Division (32 / 16 bit); Enhanced Boolean Bit Manipulation Facilities; Additional Instructions to Support HLL and Operating Systems; Register-Based Design with Multiple Variable Register Banks; Single-Cycle Context Switching Support; 16 MBytes Total Linear Address Space for Code and Data; 1024 Bytes On-Chip Special Function Register Area; (2)16-Priority-Level Interrupt System with 59 Sources, Sample-Rate down to 40 ns; (3)8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC); (4)Clock Generation via on-chip PLL (factors 1:1.5/2/2.5/3/4/5), via prescaler or via direct clock input, Additional 32 kHz Oscillator; (5)On-Chip Memory Modules, 2 KBytes On-Chip Internal RAM (IRAM); 8 KBytes On-Chip Extension RAM (XRAM); 256 KBytes On-Chip Mask ROM; (6)On-Chip Peripheral Modules, 12-Channel 10-bit A/D Converter with Programmable Conversion Time down to 7.8 ms; Two 16-Channel Capture/Compare Units (eight IO lines each); Two Multi-Functional General Purpose Timer Units with 5 Timers; Two Asynchronous/Synchronous Serial Channels; High-Speed Synchronous Serial Channel (SPI); On-Chip CAN Interface (Rev. 2.0B active, Full CAN / Basic CAN) with 15 Message Objects (C161CS 2x, C161JC 1x); Serial Data Link Module (SDLM), compliant with J1850, supporting Class 2 (C161JC/JI); IIC Bus Interface (10-bit Addressing, 400 kHz) with 2 Channels (multiplexed).

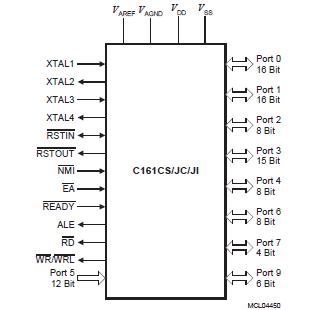

Diagrams
