Product Summary
The ak4705vq-l is a 2ch 24bit DAC. The ak4705vq-l offers the ideal features for digital set-top-box systems. Using AKMs multi-bit architecture for its modulator, the ak4705vq-l delivers a wide dynamic range while preserving linearity for improved THD+N performance. The ak4705vq-l integrates a combination of SCF and CTF filters, removing the need for high cost external filters and increasing performance for systems with excessive clock jitter. The ak4705vq-l also including the audio switches, volumes, video switches, video filters, etc. designed primarily for digital set-top-box systems. The ak4705vq-l is offered in a space saving 48-pin LQFP package.
Parametrics
ak4705vq-l absolute maximum ratings: (1)Power Supply VD: -0.3 to 6.0 V; (2)Input Current (any pins except for supplies)IIN: ±10 mA; (3)Input Voltage VIND: -0.3 to VD+0.3 V; (4)Video Input Voltage VINV: -0.3 to VVD1+0.3 V; (5)Audio Input Voltage (except DACL/R pins)VINA: -0.3 to VP+0.3 V; (6)Audio Input Voltage (DACL/R pins)VINA: -0.3 to VD+0.3 V; (7)Ambient Operating Temperature Ta: -10 to 70 °C; (8)Storage Temperature Tstg: -65 to 150 °C.
Features
ak4705vq-l features: (1)Sampling Rates Ranging from 32kHz to 50kHz; (2)64dB High Attenuation 8x FIR Digital Filter; (3)2nd Order Analog LPF; (4)On Chip Buffer with Single-Ended Output; (5)Digital De–Emphasis for 32k, 44.1k and 48kHz Sampling; (6)I/F Format: 24bit MSB Justified, I2S, 18/16bit LSB Justified; (7)Master Clock: 256fs, 384fs; (8)High Tolerance to Clock Jitter.

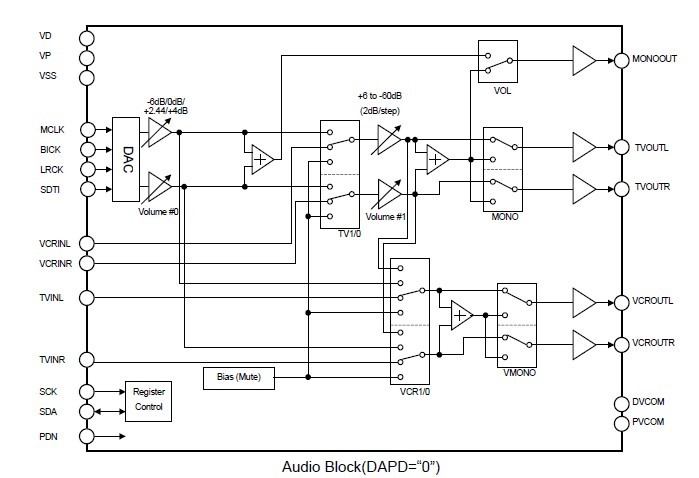

Diagrams
