Product Summary

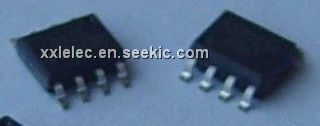

The ap4410m is an advanced power MOSFET. The ap4410m is from APEC provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The ap4410m is in SO-8 package. Applications of the ap4410m include: commercial-industrial surface mount and low voltage applications such as DC/DC converters.
Parametrics
ap4410m absolute maximum ratings: (1) Drain-Source Voltage VDS: 30V; (2) Gate-Source Voltage VGS: ±25V; (3) Continuous Drain Current ID@TA=25°C: 10A; (4) Continuous Drain Current ID@TA=70°C: 8A; (5) Pulsed Drain Current IDM: 50A; (6) Total Power Dissipation PD@TA=25°C: 2.5W; (7) Linear Derating Factor: 0.02W/°C; (8) Storage Temperature Range TSTG: -55 to 150°C; (9) Operating Junction Temperature Range TJ: -55 to 150°C.
Features
ap4410m features: (1) Low On-Resistance; (2) Fast Switching; (3) Simple Drive Requirement.

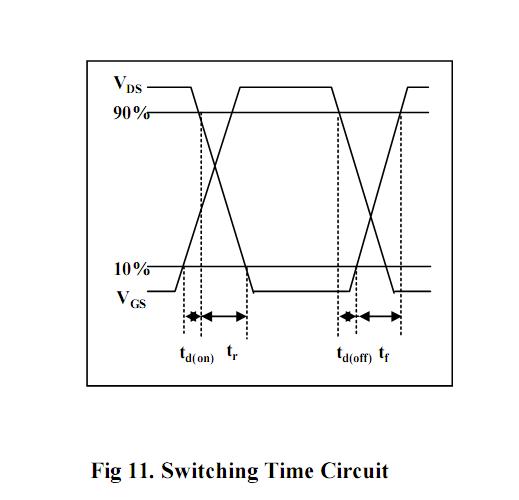

Diagrams
