Product Summary
The at83c23ok203 is a Smart@Link chip set. It is a ready to use precertified smart card reader interface, that can be implemented into USB hosts. The at83c23ok203 facilitates hardware integrators by reducing time-to-market and offers a unique opportunity to quickly and easily include smart card reader functionality in systems like PCs, Notebooks, Keyboards, Smart Card based Dongles, Monitors, Mice, PDAs, Thin Clients, Biometric devices etc.
Parametrics
at83c23ok203 absolute maximum ratings: (1)Ambiant Temperature Under Bias: -25℃ to 85℃; (2)Storage Temperature: -65℃ to + 150℃; (3)Voltage on VCC to VSS: -0.5 V to + 6.0V; (4)Voltage on Any Pin to VSS: -0.5 V to VCC + 0.5 V; (5)Power Dissipation: 1 W.
Features
at83c23ok203 features: (1)Host Interface: USB (Compliant with USB 1.1 and 2.0, CCID Supported), Transmission Speed: USB: 12 MBit/sec, Customer Specific USB-descriptors, Serial; (2)Smart Card Interface: Smart Card Interface Compliant with ISO 7816 and EMV 2000, Support of T=0, T=1, TWI (S=8), 2-wire: SLE 4432/42 (S=10), 3-wire: SLE4418/28 (S=9), others on request Compliance, WHQL (Microsoft) Certified, EMV 2000 (Europay, Mastercard, Visa) Certified, USB 1.1 and 2.0.

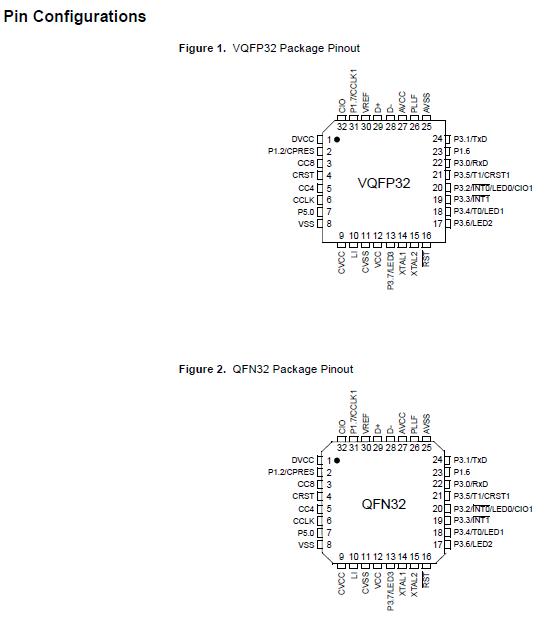

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 AT83C23OK203-ALRUM |
Atmel |
Interface - Specialized OMNIKEY PCLINK 2.3 Green |
Data Sheet |
Negotiable |
|
||||
|
AT83C23OK203-ALTUM |
Atmel |
Interface - Specialized OMNIKEY PCLINK 2.3 Green |
Data Sheet |
Negotiable |
|
||||
|
AT83C23OK203-RARUM |
Atmel |
Interface - Specialized OMNIKEY 32K ROM Green |
Data Sheet |
Negotiable |
|
||||
|
AT83C23OK203-Z1TUM |
Atmel |
Interface - Specialized OMNIKEY PCLINK 2.3 Green |
Data Sheet |
Negotiable |
|
||||
 |
AT83C23OK203-RATUM |
Atmel |
Interface - Specialized Omnikey 32K ROMus |
Data Sheet |
Negotiable |
|
||||
 |
AT83C23OK203-PUTUM |
Atmel |
Interface - Specialized Omnikey 32K ROM Indus Tray Green |
Data Sheet |
Negotiable |
|
||||
