Product Summary
The c1815 is an Audio Frequency Amplifier & High Frequency OSC.
Parametrics
c1815 absolute maximum ratings: (1)VCBO, Collector-Base Voltage: 60 V; (2)VCEO, Collector-Emitter Voltage: 50 V; (3)VEBO, Emitter-Base Voltage: 5 V; (4)IC, Collector Current: 150 mA; (5)IB, Base Current: 50 mA; (6)PC, Collector Power Dissipation: 400 mW; (7)TJ, Junction Temperature: 125 ℃; (8)TSTG, Storage Temperature: -55 to 150 ℃.
Features
c1815 features: (1)Complement to KSA1015; (2)Collector-Base Voltage: VCBO= 50V.

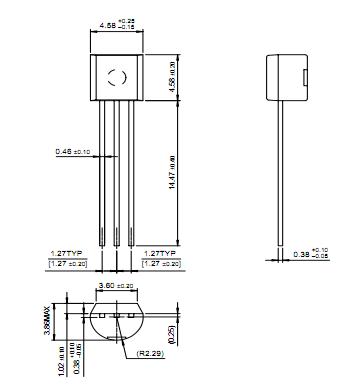

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 c1815 |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
C1815LT1 |
Other |
|
Data Sheet |
Negotiable |
|
||||
