Product Summary
The dn6848s-e1v is a combination of a Hall element, amplifier, Schmitt circuit, and stabilized power supply/temperature compensator integrated on an identical chip by using the IC technology. The dn6848s-e1v amplifies Hall element output at the amplifier, converts into a digital signal through the Schmitt circuit, and drives the TTL or MOS IC directly. The applications of the dn6848s-e1v include Speed sensors, Position sensors, Rotation sensors, Keyboard switches, Microswitches.
Parametrics
dn6848s-e1v absolute maximum ratings: (1)Supply voltage, VCC: 18 V; (2)Supply current, ICC: 8 mA; (3)Circuit current, IO: 20 mA; (4)Power dissipation, PD: 150 mW; (5)Operating ambient temperature, Topr: –40 to +100 ℃; (6)Storage temperature, Tstg: –55 to +125 ℃.
Features
dn6848s-e1v features: (1)High sensitivity and low drift; (2)Stable temperature characteristics due to the additional temperature compensator; (3)Wide operating supply voltage range (VCC=4.5 to 16V); (4)Operating in one way magnetic field; (5)TTL and MOS ICs directly drivable by output; (6)Output open collector.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 DN6848S-E1V |
|
IC HALL EFF SENSOR UNI-D SOH-4D |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
 |
DN6847S |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DN6847SE |
|
IC HALL EFF SENSOR W/PULL UP 3- |
Data Sheet |
Negotiable |
|
||||
|
DN6847TE |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
DN6848 |
|

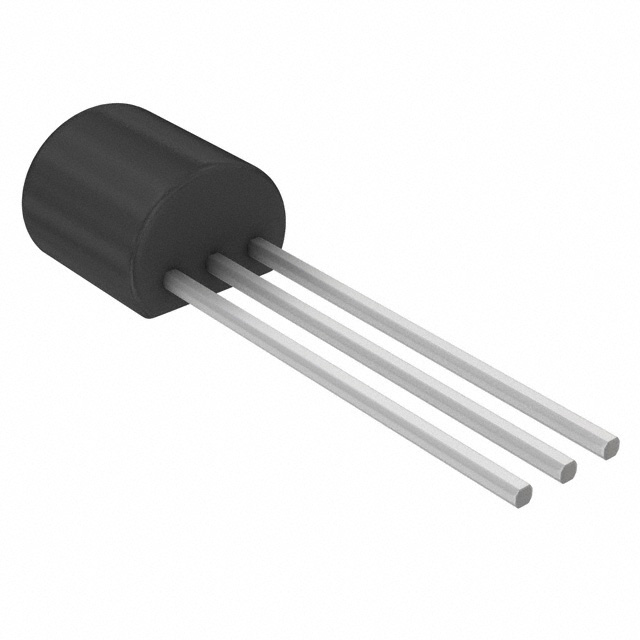

IC HALL EFF SENSOR UNI-D 3-SIP |
Data Sheet |
Negotiable |
|
||||
|
DN6848S |
Other |
|
Data Sheet |
Negotiable |
|
||||
|
DN6848SE |
Other |
|
Data Sheet |
Negotiable |
|
||||
