Product Summary
The ecp100d is a high dynamic range driver amplifier in a low-cost surface mount package. The InGaP/GaAs HBT of the is able to achieve superior performance for various narrowband-tuned application circuits with up to +46 dBm OIP3 and +31.5 dBm of compressed 1-dB power. The ecp100d is housed in an industry standard Lead-free/Green/RoHS-compliant 16-pin 4 × 4mm QFN SMT package. The ecp100d is 100% RF and DC tested. The applications of the ecp100d include Final stage amplifiers for Repeaters, Mobile Infrastructure, Defense/Homeland Security.
Parametrics
ecp100d absolute maximum ratings: (1)Operating Case Temperature: -40 to +85 ℃; (2)Storage Temperature: -65 to +125 ℃; (3)RF Input Power (continuous): +26 dBm; (4)Device Voltage: +8 V; (5)Device Current: 900 mA; (6)Device Power: 5 W; (7)Junction Temperature: +250 ℃.
Features
ecp100d features: (1)400 to 2300 MHz; (2)+31.5 dBm P1dB; (3)+46 dBm Output IP3; (4)18 dB Gain @ 900 MHz; (5)12 dB Gain @ 1960 MHz; (6)Single Positive Supply (+5V); (7)Lead-free/Green/RoHS-compliant 16pin 4mm QFN package.

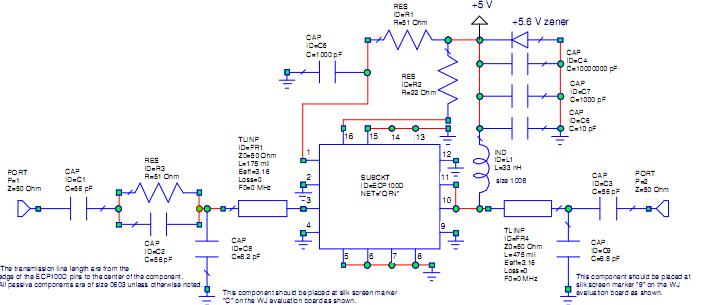

Diagrams
Image | Part No | Mfg | Description | ![]() |
Pricing (USD) |
Quantity | ||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
![]() |
![]() ECP100D-PCB1960 |
![]() TriQuint Semiconductor |
![]() RF Development Tools 1960MHz Eval Brd 12dB Gain |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ECP100D-PCB2140 |
![]() TriQuint Semiconductor |
![]() RF Development Tools 2140MHz Eval Brd 11dB Gain |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ECP100D-PCB900 |
![]() TriQuint Semiconductor |
![]() RF Development Tools 900MHz Eval Brd 18dB Gain |
![]() Data Sheet |
![]()
|
|
||||||||||
![]() |
![]() ECP100D-G |
![]() TriQuint Semiconductor |
![]() RF Amplifier 400-2300MHz +31.5dBm P1dB |
![]() Data Sheet |
![]()
|
|
