Product Summary
The frg25ba60 is a high speed isolated diode module designed for high power switching application. The frg25ba60 is suitable for high frequency application requiring low loss and high speed control. The applications of the frg25ba60 include Inverter Welding Power Supply, Power Supply for Telecommunication, Various Switching Power Supply.
Parametrics
frg25ba60 absolute maximum ratings: (1)VRRM, Repetitive Peak Reverse Voltage: 600 V; (2)VR DC, D.C. Reverse Voltage: 480 V; (3)IF, Forward Current: 25 A; (4)IFSM, Surge Forward Current: 450 A; (5)I2t: 840 AS; (6)Tj, Operating Junction Temperature: -40 to +150 ℃; (7)Tstg, Storage Temperature: -40 to +125 ℃; (8)VISO, Isolation Breakdown Voltage R.M.S.: 2500 V; (9)Mounting Torque Mounting M4: 1.5 Nm; (10)Mass: 23 g.
Features
frg25ba60 features: (1)High Speed trr ≤ 100ns; (2)IF AV 25A; (3)Isolated Mounting base; (4)High Surge Capability.

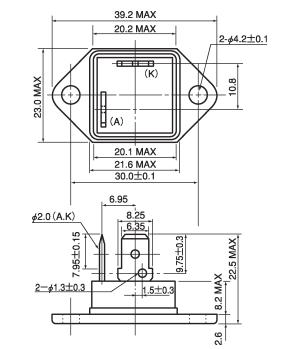

Diagrams
