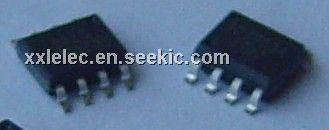

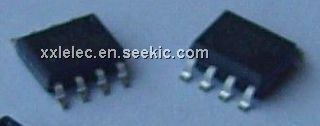

HMC234C8

hmc234c8, GaAs MMIC SMT high isolation SPDT switch, dc, 30 dBm, -7.5 Vdc, 6.0 GHz, SMD

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: HMC234C8

Brand:: Hittite Microwave Corporation - Hittite | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:HMC234C8
US $2.30 - 2.50
Quantity:

piece

Product Summary

The hmc234c8 is a GaAs MMIC SMT high isolation SPDT switch. The HMC234C8 is a broadband high isolation nonrel ective GaAs MESFET SPDT switch in a nonhermetic surface mount ceramic package. Covering DC to 8.0 GHz, the switch features >52 dB isolation up to 2 GHz and >38 dB isolation up to 8.0 GHz. The switch operates using complementary negative control voltage logic lines of -5/0V and requires no bias supply. This product is an excellent pin-for-pin replacement to the SMDI SSW124. It is ideal for: (1)Telecom Infrastructure; (2)Microwave Radio & VSAT; (3)Military Radios, Radar & ECM; (4)Test Instrumentation.

Parametrics

hmc234c8 absolute maximum ratings: (1)RF Input Power (Vctl= -5V)(0.5 - 8 GHz): +30 dBm (@ +50 °C); (2)Control Voltage Range (A & B): +1.0V to -7.5 Vdc; (3)Channel Temperature: 150 °C; (4)Thermal Resistance: 94 °C/W; (5)Storage Temperature: -65 to +150 °C; (6)Operating Temperature: -40 to +85 °C; (7)ESD Sensitivity (HBM)Class: 1A.

Features

hmc234c8 features:Isolation: (1)Isolation: 52 dB @ 2.0 GHz 40 dB @ 6.0 GHz; (2)Insertion Loss: 1.6 dB Typical @ 6.0 GHz; (3)Non-Rel ective Design; (4)Surface Mount Ceramic Package.
