IPB90N06S4L-04

ipb90n06s4l-04, OptiMOS-T2 Power-Transistor, ±16 V, 90 A, TO, eupec GmbH

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: IPB90N06S4L-04

Brand:: eupec GmbH - infineon | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:IPB90N06S4L-04
US $2.30 - 2.50
Quantity:

piece

Product Summary

The ipb90n06s4l-04 is an OptiMOS-T2 Power-Transistor.

Parametrics

ipb90n06s4l-04 absolute maximum ratings: (1)Continuous drain current, ID: 90 A; (2)Pulsed drain current, ID,pulse: 360 A; (3)Avalanche energy, single pulse, EAS: 331 mJ; (4)Avalanche current, single pulse, IAS: 90 A; (5)Gate source voltage, VGS: ±16 V; (6)Power dissipation, Ptot: 150 W; (7)Operating and storage temperature, Tj,Tstg: -55 to +175 ℃; (8)IEC climatic category; DIN IEC 68-1: 55/175/56.

Features

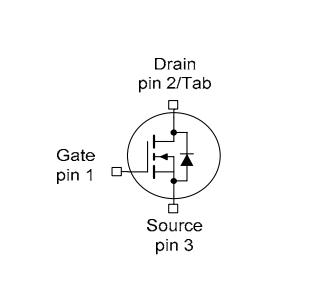

ipb90n06s4l-04 features: (1)N-channel - Enhancement mode; (2)AEC Q101 qualified; (3)MSL1 up to 260℃ peak reflow; (4)175℃ operating temperature; (5)Green Product (RoHS compliant); (6)100% Avalanche tested.
