IPS521S

high side switch, SO, -0.3 to 5.5V, 1.4A, ips521s

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: IPS521S

Brand:: International Rectifier - IR | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:IPS521S
US $2.20 - 2.50
Quantity:

piece

Product Summary

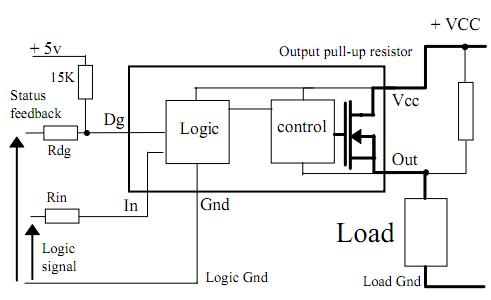

The ips521s is a fully protected five terminal high side switch with built in short circuit, over-temperature, ESD protection, inductive load capability and diagnostic feedback. The output current is controlled when it reaches Ilim value. The current limitation is activated until the thermal protection acts. The over-temperature protection turns off the high side switch if the junction temperature exceeds Tshutdown. A diagnostic pin is provided for status feedback of short-circuit, over-temperature and open load detection. The double level shifter circuitry allows large offsets between the logic ground and the load ground.

Parametrics

ips521s absolute maximum ratings: (1)Vout Maximum output voltage: Vcc-50 to Vcc+0.3V; (2)Voffset Maximum logic ground to load ground offset: Vcc-50 to Vcc+0.3V; (3)Vin Maximum Input voltage: -0.3 to 5.5V; (4)Iin, max Maximum positive IN current: -5 to 10 mA; (5)Vdg Maximum diagnostic output voltage: -0.3 to 5.5 V; (6)Idg, max Maximum diagnostic output current: -1 to 10 mA; (7)Isd cont. Diode max. permanent current: 1.4A; (8)Isd pulsed Diode max. pulsed current: 10A; (9)ESD1 Electrostatic discharge voltage (Human Body): 4 kV; (10)ESD2 Electrostatic discharge voltage (Machine Model): 0.5 kV; (11)Pd Maximum power dissipation: 1 W; (12)Tj max. Max. storage & operating junction temp: -40 to +150℃; (13)Vcc max. Maximum Vcc voltage: 50 V.

Features

ips521s features: (1)Over temperature protection (with auto-restart); (2)Short-circuit protection (current limit); (3)Active clamp; (4)E.S.D protection; (5)Status feedback; (6)Open load detection; (7)Logic ground isolated from power ground.
