Product Summary

The lb043wq2-td01 is a Liquid Crystal Display. The lb043wq2-td01 is a White LED Backlight Assembly product of TFT LCD with touch screen panel. This module of the lb043wq2-td01 utilizes amorphous silicon thin film transistors. A 4.3” active matrix liquid crystal display allows 16M colors to be displayed. The applications are portable DVD, car navigation, multimedia applications and others AV system.

Parametrics

lb043wq2-td01 absolute maximum ratings: (1)Power Supply Voltage, VDD: -0.3 to 4.6 V; (2)LED Forward Current, If: 30 mA; (3)Operating Temperature, Top: -20 to 70 ℃; (4)Storage Temperature, Tst: -30 to 80 ℃.

Features

lb043wq2-td01 features: (1)High brightness & contrast ratio; (2)Wide viewing angle; (3)WQVGA(480 × 272 pixels) resolution; (4)8 bits color depth; (5)T-Con & power block is built In D-IC; (6)Low power consumption; (7)With touch screen panel (film to glass type); (8)DE (Data Enable) only mode – DE, DOTCLK.

Diagrams

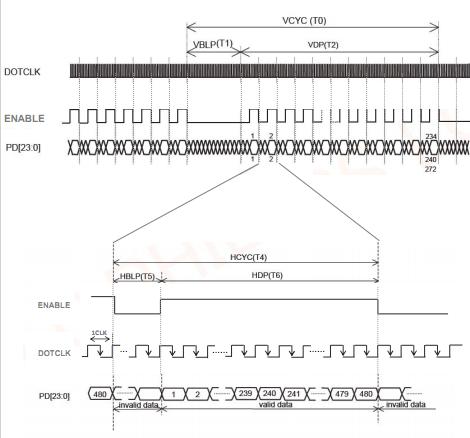

lb043wq2-td01 block diagram
