Product Summary

The lh0002n is a high speed unity gain buffer designed to provide high current drive capability at frequencies from DC to over 50MHz. It is capable of providing a continuous current of ±100mA and a peak of ±400mA. The lh0002n is ideal to integrate with an operational amplifier inside a close loop configuration. The applications of the lh0002n include (1)Line Driver; (2)Instrumentation Shield Driver; (3)High Speed D/A Conversion; (4)Precision Current Source; (5)Video Driver.

Parametrics

lh0002n absolute maximum ratings: (1)Supply Voltage: ±22V; (2)Power Dissipation: 600mW; (3)Input Voltage: (Equal to Power Supply Voltage); (4)Storage Temperature Range: -65℃ to +150℃; (5)Junction Temperature: N Package: +150℃; H Package: +175℃; (6)Steady State Output Current: ±100mA; (7)Pulsed Output Current (50ms On/1 sec. Off): ±400mA; (8)Lead Temperature Soldering (10 seconds): Metal Can: 300℃; Plastic: 300℃; (9)ESD Rating: 2kV.

Features

lh0002n features: (1)High Input Impedance: 400kΩ; (2)Low Output Impedance: 3Ω; (3)High Power Efficiency; (4)Low Harmonic Distortion; (5)Bandwidth: DC to 50MHz; (6)Output Voltage Swing that Approaches Supply Voltage; (7)Pulsed Output Current: 400mA; (8)Slew Rate: 200V/us; (9)Operation: ±5V to ±20V.

Diagrams

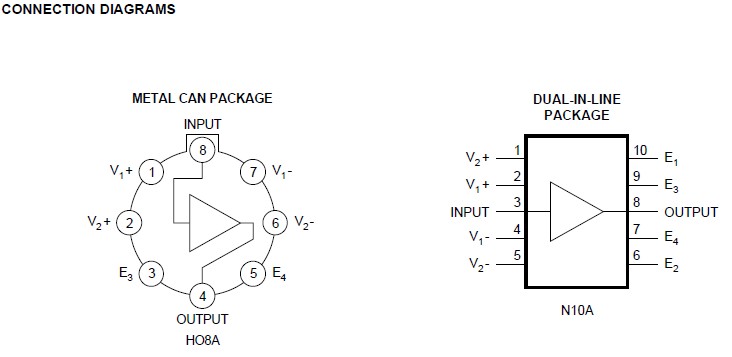

lh0002n pin connection
