The lm9022mx nopb is a bridged power amplifier capable of delivering typically 2W of continuous average power into a 10Ω filament load when powered by a 5V power supply. To conserve power in portable applications, the lm9022mx micropower shutdown mode (IQ = 0.6μA, typ) is activated when VDD is applied to the SHUTDOWN pin. Additional the lm9022mx features include thermal shutdown protection, unity-gain stability, and external gain set. It is ideal for: (1)VCR/DVD Displays; (2)RADIO/TUNER Displays.
Parametrics
lm9022mx nopb absolute maximum ratings: (1)Supply Voltage: -0.3V to +6.0V; (2)Supply Temperature: -65°C to +150°C; (3)Input Voltage: -0.3V to VDD +0.3V; (4)ESD Susceptibility (Note 4): 5000V; (5)ESD Susceptibility (Note 5): 250V; (6)Junction Temperature: 150°C; (7)Soldering Information Small Outline Package Vapor Phase (60 sec.): 215°C; (8)Infrared (15 sec.): 220°C.
Features
lm9022mx nopb features: (1)No transformers required; (2)SO or DIP packaging.

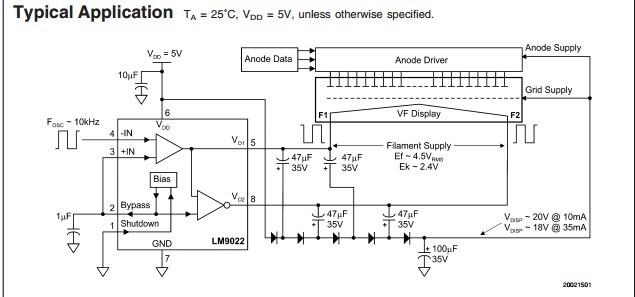

Diagrams
