Product Summary
The lq065t9br51u is a Color TFT LCD Module. The SHARP color TFT-LCD module is an active matrix LCD (Liquid Crystal Display) produced by making the most of Sharp s expertise in liquid-crystal and semiconductor technologies. The active device is amorphous silicon TFT (Thin Film Transistor). The module has a 16:9 aspect ratio and accepts full color video signal conforming to the NTSC and PAL systems.
Parametrics
lq065t9br51u absolute maximum ratings: (1)Positive power supply voltage, VSH: -0.3 +6.0V; (2)Power supply for Hi, VGH: -0.3 +33.0V; (3)gate driver Lo VGL: VGH-33.0 VGH+0.3V; (4)Input signals [terminal 4-1], VIA: -0.3 VSH+0.3V; (5)Input signals [terminal 4-2], VID: -0.3 VSH+0.3V; (6)Output signals [terminal 4-3] , VOD: -0.3 VSH+0.3V; (7)DC bias voltage of common electrode driving signal, VDC: -4 +6V; (8)Storage temperature, stg: -30 85 ℃; (9)Operating temperature （panel surface）, opr1: -30 85 ℃; (10)Operating temperature （Ambient temperature）, opr2: -30 65 ℃.
Features
lq065t9br51u features: (1)16:9 aspect ratio suitable for the wide-screen systems; (2)a variety of display modes can be selected without any loss of wide-screen characteristics; (3)The 6.5 screen produces a high resolution image that is composed of 96,000 pixel elements in a stripe arrangement; (4)Wide viewing angle technology is adopted; (5)?External clock synchronization allows an extremely clear image to be displayed; (6)TFT-active matrix-LCD drive system with high contrast; (7)Dual mode type [NTSC (M) and PAL(B?G) standards]; (8)MBK-PAL which enables the 240-scanning lines panel to display a picture with virtually 274-scanning lines.; (9)Reduced reflection as a result of low reflectance black matrix and an antiglare (AG) and anti- reflection (ＡR) polarizer being adopted. A thin, lightweight and compact; (10)Multi scene display which is able to display high-quality color image in all lighting condition ; (11)Through the use of TN-normally white mode, an image with highly natural color reproduction is realized; (12)It is possible to reverse the display direction (right／left and up／down); (13)Self–heating Backlight that is excellent of brightness rising characteristics at low temperature in consideration of automotive application.

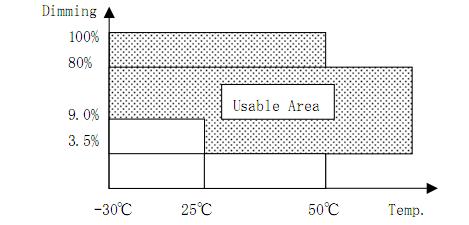

Diagrams
