MAX4126EUA+T

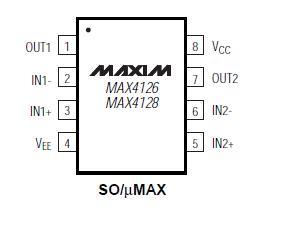

MAX4126EUA+T, Single-Supply Rail-to-Rail I/O Op Amp, 8 SO, )+2.7V to +6.5V, 5MHz, 650μA

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.20~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 800 :	2.40 / Piece
801 ~ 1600 :	2.20 / Piece

PartNumber:: MAX4126EUA+T

Brand:: Dallas Semiconductor - Maxim | Pack: | D/C:

Availability:: Supply Ability: 8000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-06-23

From Other Seller

Part Number:MAX4126EUA+T
US $2.20 - 2.50
Quantity:

piece

Product Summary

The MAX4126EUA+T is an operational amplifier combines wide bandwidth and excellent DC accuracy with Rail-to-Rail operation at the inputs and outputs. The MAX4126EUA+T requires only 650μA per amplifier, and operate from either a single supply (+2.7V to +6.5V) or dual (±1.35V to ±3.25V) with a common-mode voltage range that extends 250mV beyond VEE and VCC. The MAX4126EUA+T is capable of driving 250Ω loads. The MAX4126EUA+T has a 5MHz gain bandwidth product. With their rail-to-rail input common-mode range and output swing, the MAX4126EUA+T is ideal for low-voltage single-supply operation. Although the minimum operating voltage is specified at 2.7V, the device typically operates down to 1.8V. In addition, low offset voltage and high speed make them the ideal signal conditioning stages for precision, low-voltage, data-acquisition systems.

Parametrics

MAX4126EUA+T absolute maximum ratings: (1)Supply Voltage (VCC-VEE): 7.5V; (2)IN+, IN-, SHDN Voltage : (VCC + 0.3V) to (VEE - 0.3V); (3)Output Short-Circuit Duration: Continuous (short to either supply); (4)Continuous Power Dissipation (TA = +70℃)(derate 5.88mW/℃ above +70℃): 471mW; (5)Operating Temperature Range: -40℃ to +85℃; (6)Maximum Junction Temperature: +150℃; (7)Storage Temperature Range: -65℃ to +160℃; (8)Lead Temperature (soldering, 10sec): +300℃.

Features

MAX4126EUA+T features: (1)+2.7V to +6.5V Single-Supply Operation; (2)Rail-to-Rail Input Common-Mode Voltage Range; (3)Rail-to-Rail Output Voltage Swing; (4)5MHz Gain-Bandwidth Product; (5)650μA Quiescent Current per Amplifier; (6)200μV Offset Voltage; (7)No Phase Reversal for Overdriven Inputs; (8)Drive 250Ω Loads; (9)Stable with 500pF Capacitive Loads; (10)Unity-Gain Stable.
