Product Summary

The mc12016p is a Dual Modulus Prescaler. The mc12016p will drive divide by 32 and 33, 40 and 41, and 64 and 65, respectively. An internal regulator of the mc12016p is provided to allow these devices to be used over a wide range of power–supply voltages. The devices of the mc12016p may be operated by applying a supply voltage of 5.0 Vdc ±10% at Pin 7, or by applying an unregulated voltage source from 5.5 Vdc to 9.5 Vdc to Pin 8.

Parametrics

mc12016p absolute maximum ratings: (1)Regulated Voltage, Pin 7, Vreg: 8.0 Vdc; (2)Power Supply Voltage, Pin 8, VCC: 10 Vdc; (3)Operating Temperature Range, TA: –40 to +85 ℃; (4)Storage Temperature Range, Tstg: –65 to +175 ℃.

Features

mc12016p features: (1)225 MHz Toggle Frequency; (2)Low–Power 7.5 mA Maximum at 6.8 V; (3)Control Input and Output Are Compatible With Standard CMOS; (4)Connecting Pins 2 and 3 Allows Driving One TTL Load; (5)Supply Voltage 4.5 V to 9.5 V; (6)Operating Temperature Range TA = –40 to 85 ℃.

Diagrams

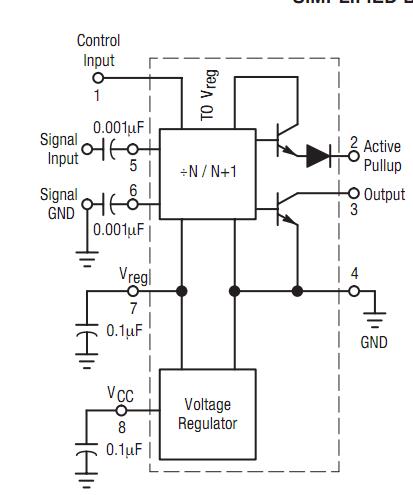

mc12016p block diagram
