Product Summary

The OPV310Y is a high performance 850nm VCSEL packaged for high speed communication links. The OPV310Y combines all the performance advantages of a VCSEL with the addition of a power monitor diode for precise control of optical power. The OPV310Y is identical electrically and optically and differs only in pin out. Refer to mechanical drawings for details. This product combination of features including high speed, high output power and concentric beam makes it an ideal transmitter for integration into all types of data communications equipment. Applications are (1)Fibre channel; (2)Gigabit ethernet; (3)ATM; (4)VSR; (5)Intra-system links; (6)Optical backplane interconnects.

Parametrics

OPV310Y absolute maximum ratings: (1)Storage temperature: -40° C to +100° C; (2)Operating temperature: 0° C to +70° C; (3)Soldering lead temperature: 260° C for 10 Seconds; (4)Maximum forward peak current: 20 mA; (5)Maximum reverse voltage: 10 V; (6)Max. Continuous optical power at 70°C: 1.1 mW.

Features

OPV310Y features: (1)850nm VCSEL technology; (2)Data rates up to 2.5 Gbps; (3)High thermal stability; (4)Low drive current/high output density; (5)Narrow and concentric beam angle; (6)Recommended for multimode fiber applications; (7)TO-46 package with flat lens; (8)Burned in for communication level reliability; (9)Monitor photodiode.

Diagrams

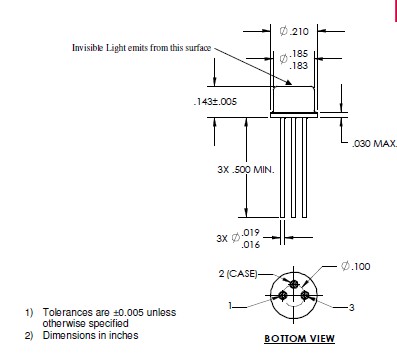

OPV310Y pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPV310Y
OPV310Y
Optek
Laser Diodes VCSEL Flat Lens
Data Sheet
0-1: $7.37
1-10: $7.07
10-100: $6.80
100-250: $6.55
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
OPV300
OPV300
Optek
Infrared Emitters VCSEL Flat Window
Data Sheet
0-1: $7.05
1-10: $6.77
10-100: $6.50
100-250: $6.26
OPV302
OPV302
Optek
Infrared Emitters VCSEL Dome Lens
Data Sheet
0-1: $5.69
1-10: $5.47
10-100: $5.26
100-250: $5.05
OPV310
OPV310
Optek
Laser Diodes VCSEL Flat Lens
Data Sheet
0-1: $6.87
1-10: $6.59
10-100: $6.34
100-250: $6.11
OPV310Y
OPV310Y
Optek
Laser Diodes VCSEL Flat Lens
Data Sheet
0-1: $7.37
1-10: $7.07
10-100: $6.80
100-250: $6.55
OPV314
OPV314
Optek
Laser Diodes VCSEL Microlens
Data Sheet
0-1: $8.82
1-10: $8.47
10-100: $8.14
100-250: $7.84
OPV314AT
OPV314AT
Optek
Laser Diodes VCSEL
Data Sheet
0-1: $11.50
1-10: $11.04
10-100: $10.61
100-250: $10.22
