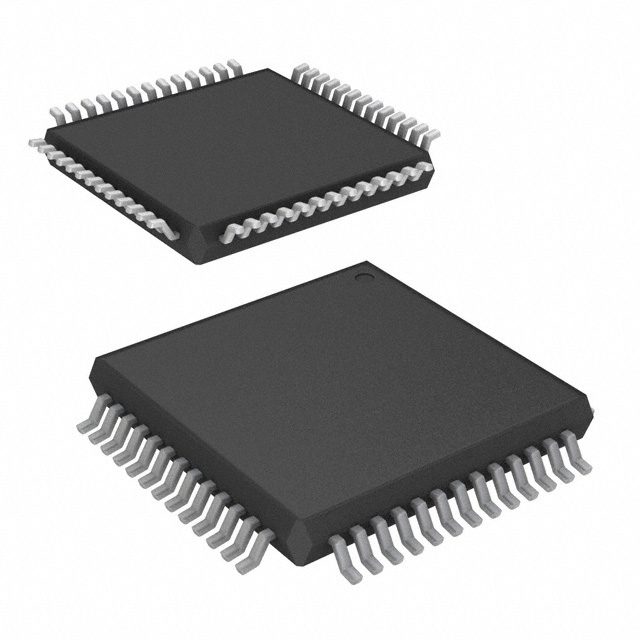

Product Summary

The r5f21244snfp is a MCU. The device is fabricated using a high-performance silicon gate CMOS process, embedding the R8C/Tiny Series CPU core, and are packaged in a 52-pin molded-plastic LQFP or a 64-pin molded-plastic FLGA. The r5f21244snfp implements sophisticated instructions for a high level of instruction efficiency. With 1 Mbyte of address space, the r5f21244snfp is capable of executing instructions at high speed. Applications of it are electronic household appliances, office equipment, audio equipment, consumer products, etc.

Parametrics

r5f21244snfp absolute maximum ratings: (1)VCC/AVCC Supply voltage: -0.3 to 6.5 V; (2)VI Input voltage: -0.3 to VCC + 0.3 V; (3)VO Output voltage: -0.3 to VCC + 0.3 V; (4)Pd Power dissipation Topr = 25℃: 500 mW; (5)Topr Operating ambient temperature: -20 to 85 (N version) /-40 to 85 (D version)℃; (6)Tstg Storage temperature: -65 to 150 ℃.

Features

r5f21244snfp features: (1)Master mode: Generates Synch Break; Detects bus collision; (2)Slave mode: Detects Synch Break; Measures Synch Field; Controls Synch Break and Synch Field signal inputs to UART0; Detects bus collision.

Diagrams

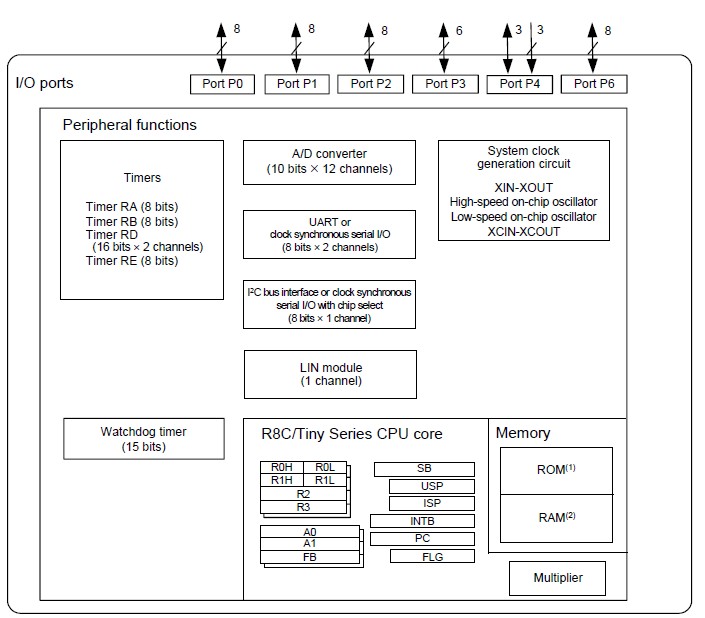

r5f21244snfp pin connection
