Product Summary

The rfp-150-100rl is a Flanged Resistor.



Parametrics

rfp-150-100rl absolute maximum ratings: (1)Resistance Value: 100 ohms, ±5%; (2)Frequency Range: DC - 2.0 GHz; (3)Power: 150 Watts; (4)Capacitance: 2.9 pF.

Features

rfp-150-100rl features: (1)DC - 2.0 GHz; (2)150 Watts; (3)BeO Ceramic; (4)Welded Silver Leads; (5)Non-Nichrome Resistive Element; (6)100% Tested.

Diagrams

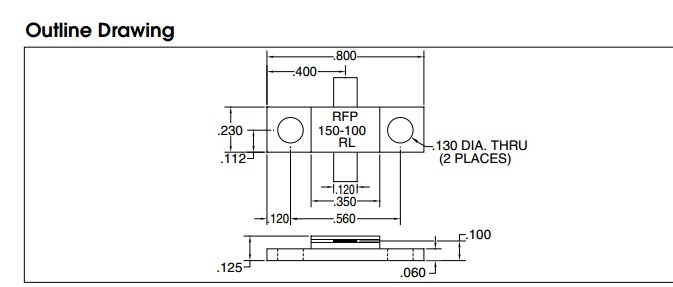

rfp-150-100rl pin connection
