SPHE8203RQ

sphe8203rq, single-chip integrated DVD A/V decoder, 50 mA, 5.5 V, QFP

Rated 5 Rating 5 | reviews | Write a review

Price:: US $2.30~2.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	2.50 / Piece
101 ~ 500 :	2.40 / Piece
501 ~ 1000 :	2.30 / Piece

PartNumber:: SPHE8203RQ

Brand:: Sunplus Technology Co., Ltd. - Sunplus | Pack: | D/C:

Availability:: Supply Ability: 8000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-08-18

From Other Seller

Part Number:SPHE8203RQ
US $2.30 - 2.50
Quantity:

piece

Product Summary

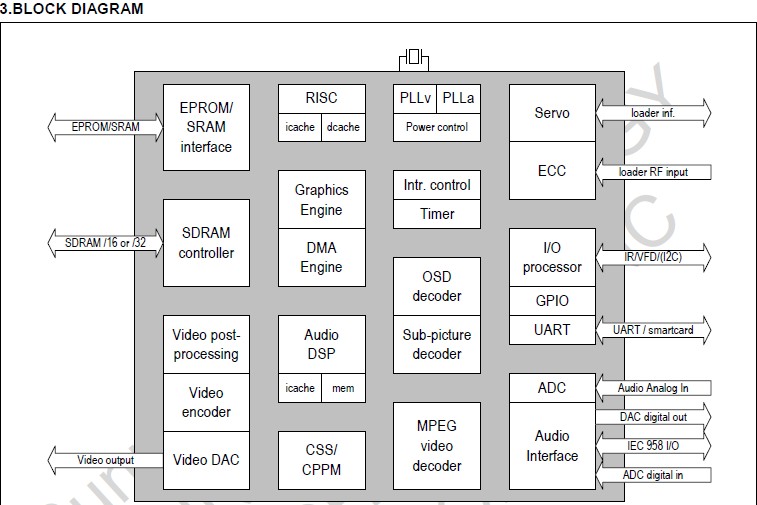

The sphe8203rq is a single-chip integrated DVD A/V decoder. The sphe8203rq performs real-time decoding and playback of ISO/IEC 11172 MPEG1 and 13818 MPEG2 stream for multiple bitstream sources.The sphe8203rq is designed to maximize system performance with minimum cost. For typical DVD application it integrates DVD/CD servo controller, multi-channel multi-format TV-encoder and audio quality ADC, with high quality 5.1ch Audio, or low cost 2-ch AC3 system.

Parametrics

sphe8203rq absolute maximum ratings: (1)Voltage on any pin relative to Vss, VIN: -0.3 to 5.5 V; (2)Voltage on VDDIO supply relative to VSS, VDDIO: -0.3 to 3.6 V; (3)Voltage on VDDK supply relative to VSS, VDDK: -0.3 to 1.98 V; (4)Storage Temperature, TSTG: -55 to 150 ℃; (5)Soldering Temp. (Max. Time), TSOLDER: 240℃ (for 5 Sec. Max.) ; (6)Short circuit current, IOS: 50 mA.

Features

sphe8203rq features: (1)Single Chip Integrated DVD Servo and A/V Decoder; (2)Integrated DVD/CD Servo Controller; (3)Embedded 32-bit RISC Processor without external host controller; (4)Embedded Audio Processor supports multiple audio standards; (5)Embedded I/O processor supports programmable interface control; (6)Embedded TV encoder with multi-channel built-in high-speed video DAC supports various display standards; (7)Embedded audio ADC supports stereo analog audio input; (8)Built-in system PLL and audio PLL generate all clock sources required from single 27MHz input; (9)Graphics: Embedded 2D Graphics Accelerator; BitBlt, line, triangle drawing support; (10)Low power: Advanced low power design; Selective standby mode; Programmable low speed operation.
