Product Summary
The tms27c010a-10jl is an ultraviolet (UV) light erasable, electrically programmable read-only memory. The tms27c010a-10jl is fabricated using power-saving CMOS technology for high speed and simple interface with MOS and bipolar circuits. All inputs ( including program data inputs) can be driven by Series 74 TTL circuits without the use of external pullup resistors. Each output of the tms27c010a-10jl can drive one Series 74 TTL circuit without external resistors.
Parametrics
tms27c010a-10jl absolute maximum ratings: (1)Supply voltage range, VCC (see Note 1): –0.6 V to 7 V; (2)Supply voltage range, VPP: –0.6 V to 14 V; (3)Input voltage range, All inputs except A9: –0.6 V to VCC + 1 V; (4)Output voltage range, with respect to VSS (see Note 1): –0.6 V to VCC + 1 V; (5)Operating free-air temperature range: 0 to 70 ℃; (6)Operating free-air temperature range: –40 to 85 ℃; (7)Storage temperature range, Tstg: –65 to 150 ℃.
Features
tms27c010a-10jl features: (1)Organization; (2)Single 5-V Power Supply; (3)Operationally Compatible With Existing Megabit EPROMs; (4)Industry Standard 32-Pin Dual-In-line Package and 32-Lead Plastic Leaded Chip Carrier; (5)All Inputs/Outputs Fully TTL Compatible; (6)Maximum Access/Minimum Cycle Time; (7)8-Bit Output For Use in; (8)Microprocessor-Based Systems; (9)Very High-Speed SNAP Pulse Programming; (10)Power-Saving CMOS Technology; (11)3-State Output Buffers; (12)400-mV Minimum DC Noise Immunity With Standard TTL Loads; (13)Latchup Immunity of 250 mA on All Input and Output Pins; (14)No Pullup Resistors Required; (15)Low Power Dissipation (VCC = 5.5 V); (16)Temperature Range Options.

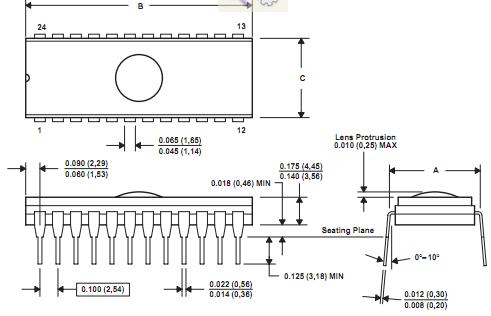

Diagrams
