The VUO121-16N01 is a three phase rectifier bridge. Application is input rectifier for drive inverters.
Parametrics
VUO121-16N01 absolute maximum ratings: (1)VRRM: 1600 V; (2)IdAVM, TC = 100°C, sinusoidal 120°: 118 A; (3)IFSM, TVJ = 45°C, t = 10 ms, VR = 0 V: 650 A; TVJ = 150°C, t = 10 ms, VR = 0 V: 580 A; (4)I2t, TVJ = 45°C, t = 10 ms, VR = 0 V: 2110 A; TVJ = 150°C, t = 10 ms, VR = 0V: 1630 A; (5)Ptot, TC = 25°C per diode: 120 W; (6)TVJ: -40 to +150 °C; (7)TVJM: 150 °C; (8)Tstg: -40 to +125 °C; (9)VISOL, 50/60 Hz, t = 1 min: 2500 V~; IISOL ≤ 1 mA, t = 1 s: 3000 V~; (10)Md, Mounting torque (M5): 4 Nm; (10-32 UNF): 35.4 lb.in; (11)dS, Creep distance on surface: 6 mm; (12)dA, Strike distance in air: 6 mm; (13)Weight, typ: 180 g.
Features
VUO121-16N01 features: (1)Industry standard package with insulated copper plate and soldering pins for PCB mounting; (2)Isolation voltage 3000 V~; (3)Convenient package outline.

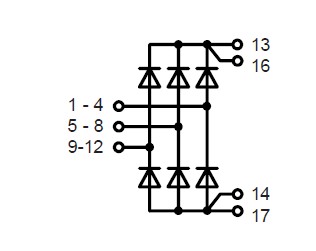

Diagrams
