Product Summary

The 1888247-1 is a Pluggable Connector.

Parametrics

1888247-1 absolute maximum ratings: (1)Voltage: 120 volts AC; (2)Current: Signal application only, 0.5 ampere maximum per individual contact; (3)Temperature: -55 to 85℃; (4)Inductance: 3.5 nH maximum; (5)Capacitance: 1.1 pF maximum; (6)Differential Impedance: 100 ohms.

Features

1888247-1 features: (1)SEP+ Application, SFP/SFP+ Application; (2)Connector; (3)Connector Style = Receptacle; (4)20 Positions; (5)Double Sided (Belly-to-Belly) PCB Mount.

Diagrams

1888247-1 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1888247-1
1888247-1
TE Connectivity / AMP
I/O Connectors 20 POS SMT 30um GOLD HIGH SPEED
Data Sheet
0-1: $2.70
1-5: $2.51
5-10: $2.32
10-25: $1.95
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1888
1888
Chicago Miniature

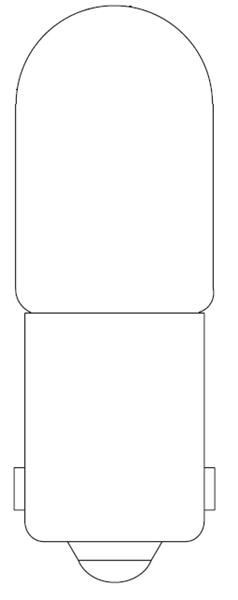

Lamps 7V .5A
Data Sheet
0-1: $0.55
1-10: $0.47
10-100: $0.42
100-500: $0.37
1888019-6
1888019-6
TE Connectivity / AMP
I/O Connectors RA Combo 36 POS 2.8mm Dual Key
Data Sheet
0-1: $3.16
1-5: $3.04
5-10: $2.88
10-25: $2.66
1888019-9
1888019-9
TE Connectivity
I/O Connectors RECEPT CONN ASSY RA 36P SHLD SMT 15AU
Data Sheet
0-285: $2.45
1888020-6
1888020-6
TE Connectivity
I/O Connectors RCPT CONN ASSY VERT MINI-SAS 36P
Data Sheet
0-1020: $1.45
1888020-7
1888020-7
TE Connectivity
I/O Connectors Mini-SAS Rcpt Conn Assy Vert 26p T&R
Data Sheet
Negotiable
1888021-8
1888021-8
TE Connectivity / AMP
I/O Connectors recpt ra 36pos press fit
Data Sheet
0-1: $0.49
1-10: $0.44
10-100: $0.41
100-500: $0.39
