Product Summary

The 25sc15m is a silicon schottky rectifier die very low forward voltage drop. It is ideal for: (1)Switching Power Supply; (2)Converters; (3)Free-Wheeling Diodes; (4)Polarity Protection Diode.


Parametrics

25sc15m absolute maximum ratings: (1)Peak Inverse Voltage VRWM: 150 V; (2)Max. Average Forward Current IF(AV)50% duty cycle, rectangular wave form: 15 A; (3)Max. Peak One Cycle Non- Repetitive Surge Current IFSM 8.3 ms, half Sine wave: 280 A; (4)Max. Junction Temperature TJ: -65 to +200 °C; (5)Max. Storage Temperature Tstg: -65 to +200 °C.

Features

25sc15m features: (1)Soft Reverse Recovery at Low and High Temperature; (2)Very Low Forward Voltage Drop; (3)Low Power Loss, High Efficiency; (4)High Surge Capacity; (5)Guard Ring for Enhanced Durability and Long Term Reliability; (6)Guaranteed Reverse Avalanche Characteristics; (7)Electrically / Mechanically Stable during and after Packaging.

Diagrams

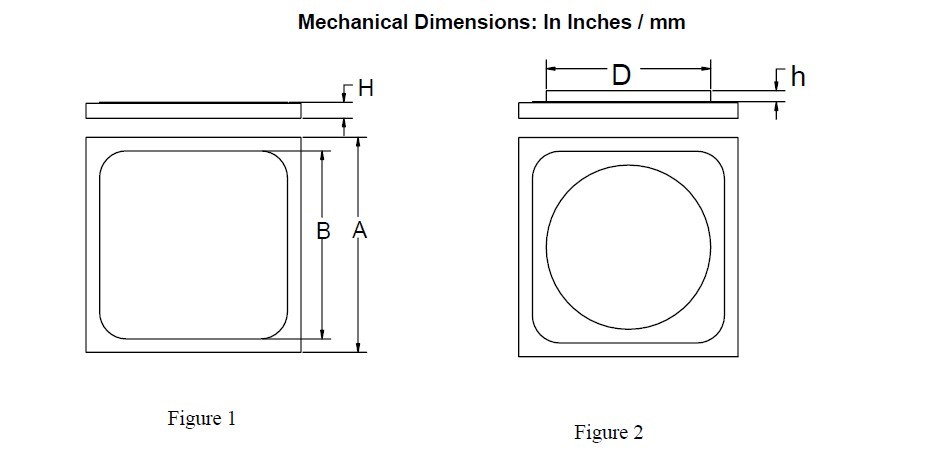

25sc15m pin connection
