Product Summary
The LC4128ZC-75MN132CU5 is an In-System Programmable SuperFAST PLD. The LC4128ZC-75MN132CU5 from Lattice offers a SuperFAST CPLD solution. The family is a blend of Lattice two most popular architectures: the ispLSI2000 and ispMACH 4A. The LC4128ZC-75MN132CU5 architecture focuses on significant innovations to combine the highest performance with low power in a flexible CPLD family. The LC4128ZC-75MN132CU5 combines high speed and low power with the flexibility needed for ease of design. With its robust Global Routing Pool and Output Routing Pool, this family delivers excellent First-Time-Fit, timing predictability, routing, pin-out retention and density migration.
Parametrics
LC4128ZC-75MN132CU5 absolute maximum ratings: (1)Supply Voltage (VCC): -0.5 to 5.5V; (2)Output Supply Voltage (VCCO): -0.5 to 4.5V; (3)Input or I/O Tristate Voltage Applied4, 5: -0.5 to 5.5V; (4)Storage Temperature: -65 to 150℃; (5)Junction Temperature (Tj) with Power Applied: -55 to 150℃.
Features
LC4128ZC-75MN132CU5 features: (1)fMAX = 400MHz maximum operating frequency; (2)tPD = 2.5ns propagation delay; (3)Up to four global clock pins with programmable clock polarity control; (4)Up to 80 PTs per output; (5)Enhanced macrocells with individual clock, reset, preset and clock enable controls; (6)Up to four global OE controls; (7)Individual local OE control per I/O pin; (8)Excellent First-Time-Fit and refit; (9)Fast path, SpeedLocking Path, and wide-PT path; (10)Wide input gating (36 input logic blocks) for fast counters, state machines and address decoders; (11)Typical static current 10μA (4032Z); (12)Typical static current 1.3mA (4000C); (13)1.8V core low dynamic power; (14)ispMACH 4000Z operational down to 1.6V VCC.

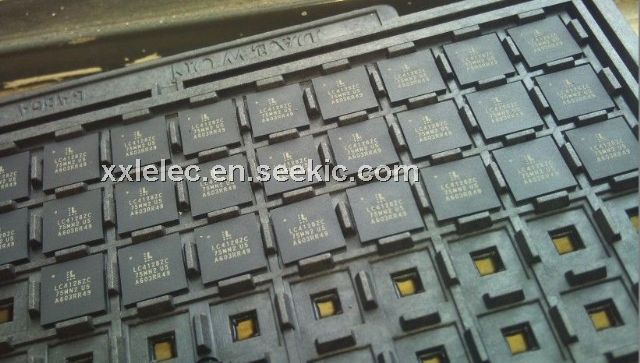

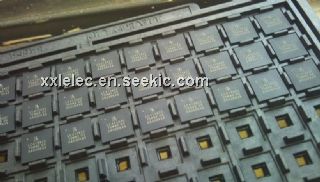

Diagrams
