LM7171

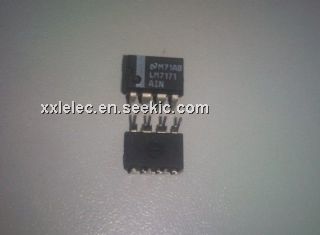

LM7171, high speed voltage feedback amplifier, SOP, 36V, 6.5mA, National Semiconductor

Rated 5 Rating 5 | reviews | Write a review

Price:: US $1.40~1.50 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
1 ~ 100 :	1.50 / Piece
101 ~ 500 :	1.45 / Piece
501 ~ 10000 :	1.40 / Piece

PartNumber:: LM7171

Brand:: National Semiconductor - NS | Pack: SOP | D/C: 12+

Availability:: Supply Ability: 10000/Day Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Not exactly what you want? Post a quick Buying Request!

Sold By

Ms. Dannie's store

(Hong Kong)

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2013-02-21

From Other Seller

Part Number:LM7171
US $1.40 - 1.50
Quantity:

piece

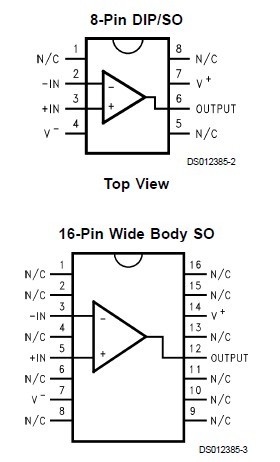

Product Summary

The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier; yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or .1. It provides a very high slew rate at 4100V/μs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171 can be used for video distribution, as a transformer driver or as a laser diode driver. Operation on ±15V power supplies allows for large signal swings and provides greater dynamic range and signal-to-noise ratio. The LM7171 offers low SFDR and THD, ideal for ADC/DAC systems. In addition, the LM7171 is specified for ±5V operation for portable applications.

Parametrics

LM7171 absolute maximum ratings: (1)ESD Tolerance: 2.5 kV; (2)Supply Voltage (V+–V.): 36V; (3)Differential Input Voltage: ±10V; (4)Output Short Circuit to Ground: Continuous; (5)Storage Temperature Range: -65℃ to +150℃; (6)Maximum Junction Temperature: 150℃.

Features

LM7171 features: (1)Easy-To-Use Voltage Feedback Topology; (2)Very High Slew Rate: 4100V/μs; (3)Wide Unity-GaiBandwidth: 200 MHz; (4)-3 dB Frequency @ AV = +2: 220 MHz; (5)Low Supply Current: 6.5 mA; (6)High OpeLoop Gain: 85 dB; (7)High Output Current: 100 mA; (8)Differential Gaiand Phase: 0.01%, 0.02°; (9)Specified for ±15V and ±5V Operation.
