Product Summary

The LXCL-PWF4-001 is a power light source LUXEON Flash specifically designed and tested for use as a camera flash in space-constrained, portable digital imaging applications. The LXCL-PWF4-001 is based on proven LUXEON technology and provide the highest levels of light output available for a solid state light source. The uniquely bright source density characteristics of the LUXEON Flash products will provide greater amounts of light where needed, enabling higher resolution pictures to be taken in lower level ambient light environments at greater distances. The applications of the LXCL-PWF4-001 include Cameraphones, Digital still cameras, PDAs.

Parametrics

LXCL-PWF4-001 absolute maximum ratings: (1)Max DC Operating Current: 350mA; (2)Peak Pulsed Forward Current: 1000mA; (3)ESD Sensitivity: JEDEC Class 3b (8kV); (4)LED Case Temperature: 85℃; (5)Storage Temperature: -40 to +120℃; (6)Reflow Soldering Temperature: 260℃ for 5 seconds max; (7)Operating Temperature: -40 to +85℃.

Features

LXCL-PWF4-001 features: (1)Highest brightness LED flash; (2)Very small emitter size; (3)Radiation patterns optimal for Camera Flash (with lens); (4)Smaller than Xenon Strobe Light; (5)Surface mount technology; (6)Superior ESD protection.

Diagrams

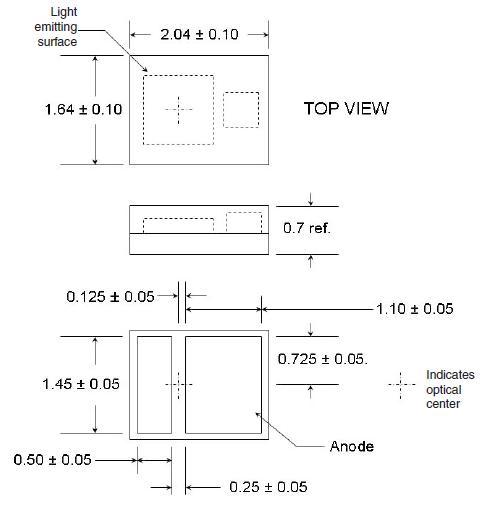

LXCL-PWF4-001 block diagram
