Product Summary
The P6KE62A is a transzorb transient voltage suppressor.
Parametrics
P6KE62A absolute maximum ratings: (1)Peak pulse power dissipation with a 10/1000μs waveform (NOTE 1, FIG. 1) PPPM Minimum: 600 Watts; (2)Peak pulse current with a 10/1000μs waveform IPPM: SEE TABLE 1 Amps; (3)Steady state power dissipation at TL=75℃ lead lengths, 0.375" (9.5mm), PM(AV): 5.0 Watts; (4)Peak forward surge current, 8.3ms single half sine-wave superimposed on rated load (JEDEC Method) unidirectional only, IFSM: 100.0 Amps; (5)Maximum instantaneous forward voltage at 50.0A for unidirectional only, VF: 3.5/5.0 Volts; (6)Operating junction and storage temperature range, TJ, TSTG: -55 to +175℃.
Features
P6KE62A features: (1)Plastic package has Underwriters Laboratory Flammability Classification 94V-0; (2)Glass passivated junction ; (3)600W peak pulse power capability with a 10/1000μs waveform, repetition rate (duty cycle): 0.01%; (4)Excellent clamping capability ; (5)Low incremental surge resistance ; (6)Fast response time: typically less than 1.0ps from 0 Volts to V(BR) for uni-directional and 5.0ns for bi-directional types; (7)Typical ID less than 1μA above 10V; (8)High temperature soldering guaranteed: 265℃/10 seconds, 0.375" (9.5mm) lead length, 5lbs. (2.3 kg) tension.

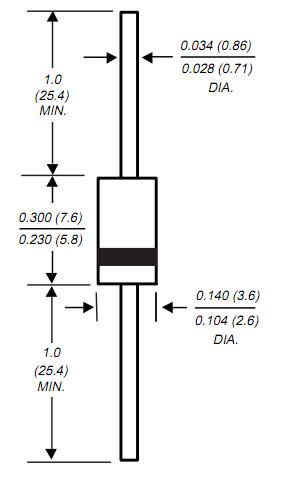

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 P6KE62A |
Littelfuse |
TVS Diodes - Transient Voltage Suppressors 53Vso 41VAC 7.1A |
Data Sheet |
|
|
||||||||||||
 |
P6KE62A/1 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 62V 5% Unidir |
Data Sheet |
Negotiable |
|
||||||||||||
 |
P6KE62A/23 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 62V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
P6KE62A/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 62V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
|
P6KE62A/4 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 62V Unidirect |
Data Sheet |
Negotiable |
|
||||||||||||
 |
P6KE62A_Q |
Fairchild Semiconductor |
TVS Diodes - Transient Voltage Suppressors 600 Watt TVS |
Data Sheet |
Negotiable |
|
||||||||||||
|
P6KE62A-E3/73 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 62V Unidirect |
Data Sheet |
|
|
||||||||||||
|
P6KE62A-E3/54 |
Vishay Semiconductors |
TVS Diodes - Transient Voltage Suppressors 600W 62V Unidirect |
Data Sheet |
|
|
||||||||||||
