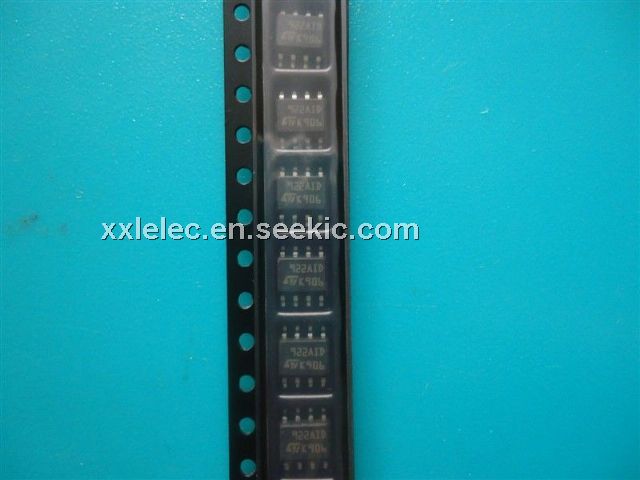

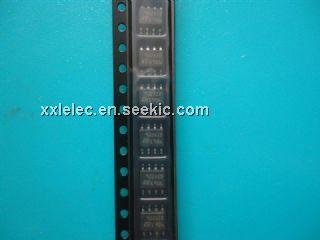

Product Summary

The TS922AID is a rail-to-rail dual BiCMOS operational amplifier optimized and fully specified for 3V and 5V operation. The TS922AID high output current allows low-load impedances to be driven. Very low noise, low distortion, low offset and a high output current capability make this device an excellent choice for high quality, low voltage or battery operated audio systems. The TS922AID is stable for capacitive loads up to 500pF.

Parametrics

TS922AID absolute maximum ratings: (1)VCC Supply voltage: 14 V; (2)Vid Differential input voltage: ±1 V; (3)Vin Input voltage: VDD-0.3 to VCC+0.3 V; (4)Tstg Storage temperature: -65 to +150 ℃; (5)Tj Maximum junction temperature: 150 ℃; (6)Output short circuit duration see note: 200 mA; (7)Soldering temperature (10sec), leaded version: 250℃; (8)Soldering temperature (10sec), unleaded version: 260℃.

Features

TS922AID features: (1)Rail-to-rail input and output; (2)Low noise: 9nV/√Hz; (3)Low distortion; (4)High output current: 80mA (able to drive 32Ω loads); (5)High-speed: 4MHz, 1V/μs; (6)Operating from 2.7V to 12V; (7)Low input offset voltage: 900μV max (TS922A); (8)ESD Internal protection: 2kV; (9)Latch-up immunity; (10)Macromodel included in this specification; (11)Dual version available in flip-chip package.

Diagrams

TS922AID pin connection

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
TS922AID
TS922AID
STMicroelectronics
Operational Amplifiers - Op Amps Dual Rail-to-Rail
Data Sheet
0-1: $1.09
1-10: $0.93
10-100: $0.67
100-250: $0.65
TS922AIDT
TS922AIDT
STMicroelectronics
Operational Amplifiers - Op Amps Dual Rail-to-Rail
Data Sheet
0-1: $1.07
1-10: $0.85
10-100: $0.74
100-250: $0.65
