Product Summary

The eg2402s-ar is a Liquid Crystal Display.

Parametrics

eg2402s-ar absolute maximum ratings: (1)Power supply voltage, VDD-VSS: 0 to +7.0 V; (2)Input voltage, VIN: VSS ≤ VIN ≤ VDD; (3)Operating temperature range, TOP: 0 to +50 ℃; (4)Storage temperature range, TST: -20 to +60 ℃.

Features

eg2402s-ar features: (1)Stn mode positive display type reflective model; (2)Display color: display data “1” dark blue; (3)Viewing angle: 60’clock direction; (4)Driving duty: 1/64 duty.

Diagrams

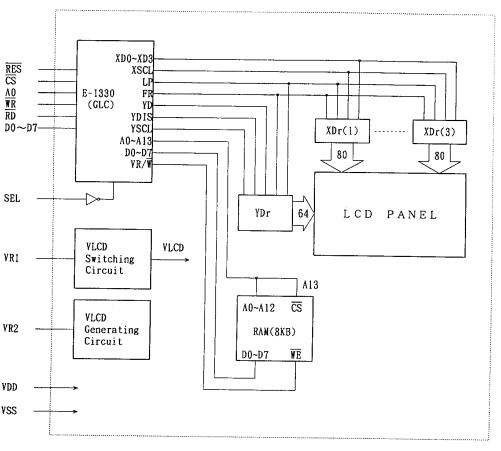

eg2402s-ar block diagram
