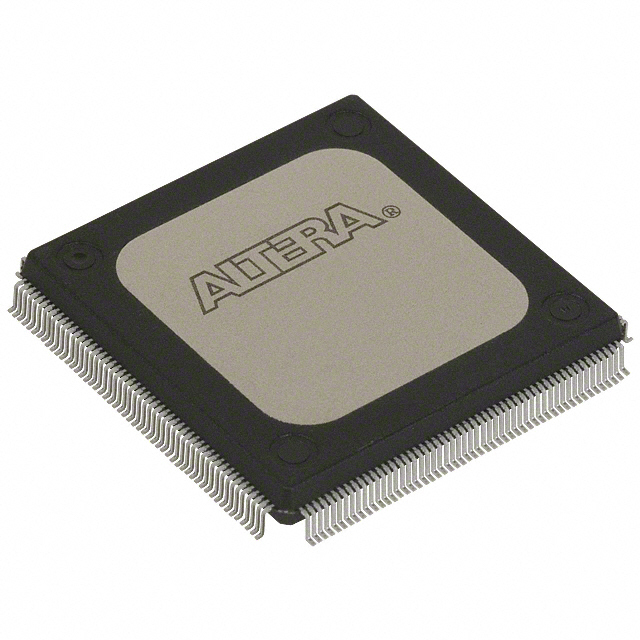

EPM9560ARC208-10

Product Summary

The epm9560arc208-10 is a Programmable Logic Device. The epm9560arc208-10 is based on Altera’s third-generation MAX architecture. Fabricated on an advanced CMOS technology, the EEPROM-based MAX 9000 family provides 6,000 to 12,000 usable gates, pin-to-pin delays as fast as 10 ns, and counter speeds of up to 144 MHz.

Parametrics

epm9560arc208-10 absolute maximum ratings: (1)VCC, Supply voltage: -2.0 to 7.0 V; (2)VI, DC input voltage: -2.0 to 7.0 V ; (3)VCCISP, Supply voltage during in-system programming: -2.0 to 7.0 V; (4)IOUT, DC output current, per pin: -25 to 25 mA; (5)TSTG, Storage temperature: -65 to 150 ℃; (6)TAMB, Ambient temperature: -65 to 135 ℃; (7)TJ, Junction temperature: 150 ℃.

Features

epm9560arc208-10 features: (1)High-performance CMOS EEPROM-based programmable logic devices (PLDs) built on third-generation Multiple Array MatriX (MAX) architecture; (2)5.0-V in-system programmability (ISP) through built-in IEEE Std. 1149.1 Joint Test Action Group (JTAG) interface; (3)Built-in JTAG boundary-scan test (BST) circuitry compliant with IEEE Std. 1149.1-1990; (4)High-density erasable programmable logic device (EPLD) family ranging from 6,000 to 12,000 usable gates (see Table 1); (5)10-ns pin-to-pin logic delays with counter frequencies of up to 144 MHz; (6)Fully compliant with the peripheral component interconnect Special Interest Group’s (PCI SIG) PCI Local Bus Specification, Revision 2.2; (7)Dual-output macrocell for independent use of combinatorial and registered logic; (8)FastTrack Interconnect for fast, predictable interconnect delays; (9)Input/output registers with clear and clock enable on all I/O pins; (9)Programmable output slew-rate control to reduce switching noise; (10)MultiVolt? I/O interface operation, allowing devices to interface with 3.3-V and 5.0-V devices; (11)Configurable expander product-term distribution allowing up to 32 product terms per macrocell; (12)Programmable power-saving mode for more than 50% power reduction in each macrocell.

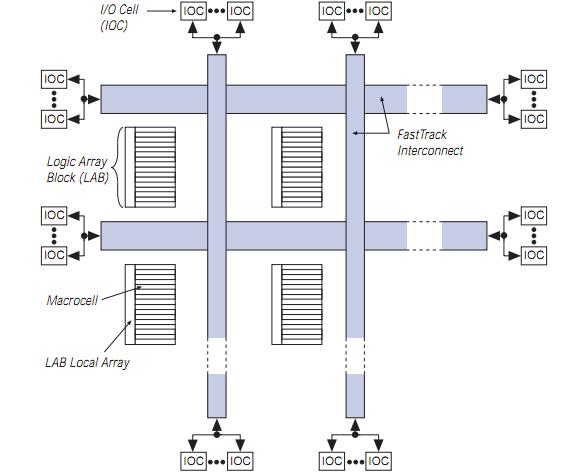

Diagrams
